How to fit a mountain bike crankset?

How to fit a mountain bike crankset?

Have you just received your new crankset? Here's how to fit it to your MOUNTAIN BIKE simply.



  • Time : 10 min
  • Level : Easy
  • Tools : Allen key set | Grease

Steps

REMINDER :Visit mountain bike cranksets Hollowtech II and GXP cranksets are the most widely used, so here's how to fit these versions.

1. Grease the crankset axle to facilitate assembly and protect it from corrosion.

2. Thread the axle into the bottom bracket until it stops. In the case of a GXP, you may need to add washers before inserting the axle. Please refer to the manual.

3. Fit the 2nd crank on the bottom bracket axle.

4. For a Hollowtech II adjust the play in the crankset using the nut at the end of the axle, then tighten the two BTR screws on the crank to the torque indicated. For a GXP, tighten the bolt at the end of the axle to the indicated torque.

Your crankset is now assembled. It's important to check play and tightness after your first ride at bike.

    Découvrez tous nos conseils & Tutoriels

    MTB - Cranksets and Cranks

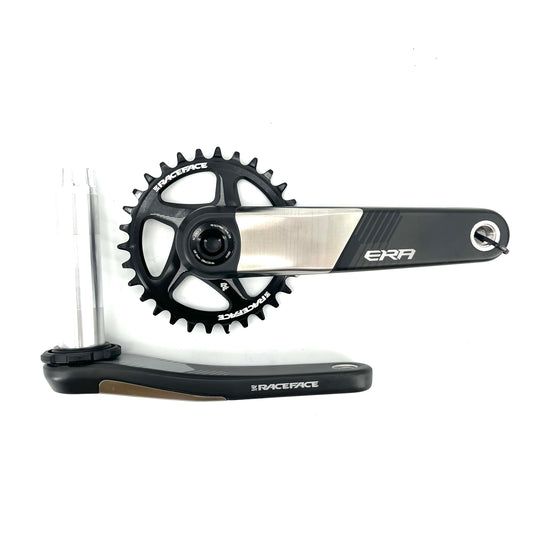

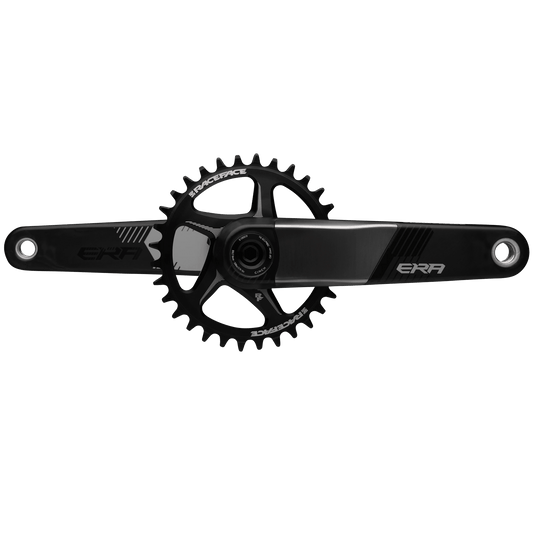

    • RACE FACE ERA CINCH crankset Black

      RACE FACE ERA CINCH crankset Black

      929,00 zł PLN
      929,00 zł PLN
    • SRAM XX1 SL EAGLE DUB BOOST 12 Speed Mono crankset Black/Grey

      SRAM XX1 SL EAGLE DUB BOOST 12 Speed Mono crankset Black/Grey

      1.393,00 zł PLN
      1.393,00 zł PLN

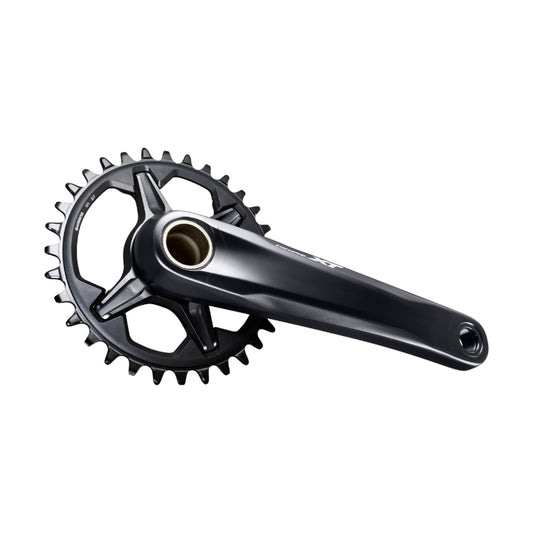

    • SHIMANO SLX M8100 12V Mono crankset

      SHIMANO SLX M8100 12V Mono crankset

      325,00 zł PLN
      325,00 zł PLN

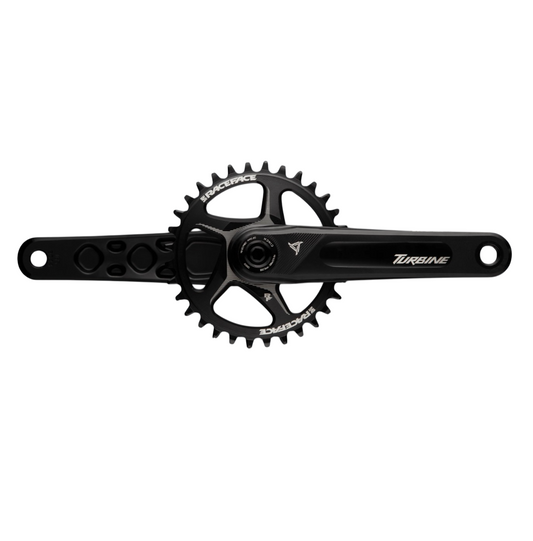

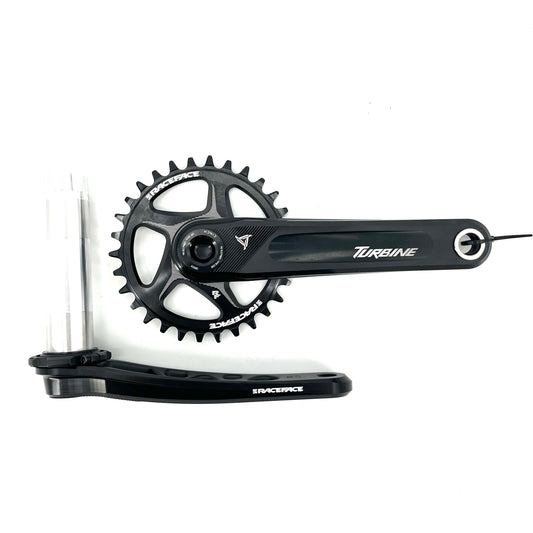

    • RACE FACE TURBINE CINCH crankset Black

      RACE FACE TURBINE CINCH crankset Black

      372,00 zł PLN
      372,00 zł PLN

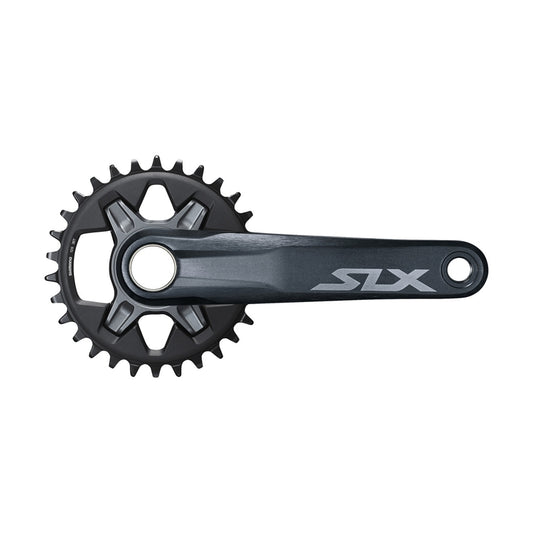

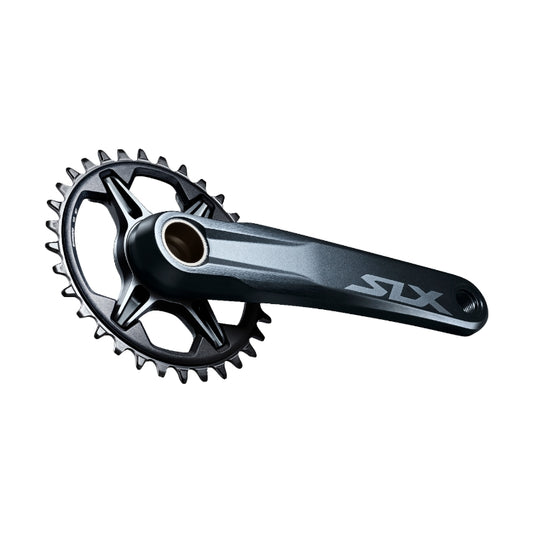

    • SHIMANO SLX M7100 12V Mono crankset

      SHIMANO SLX M7100 12V Mono crankset

      279,00 zł PLN
      279,00 zł PLN

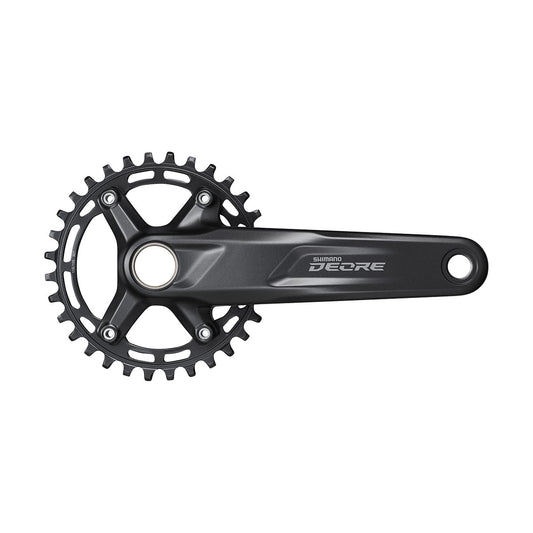

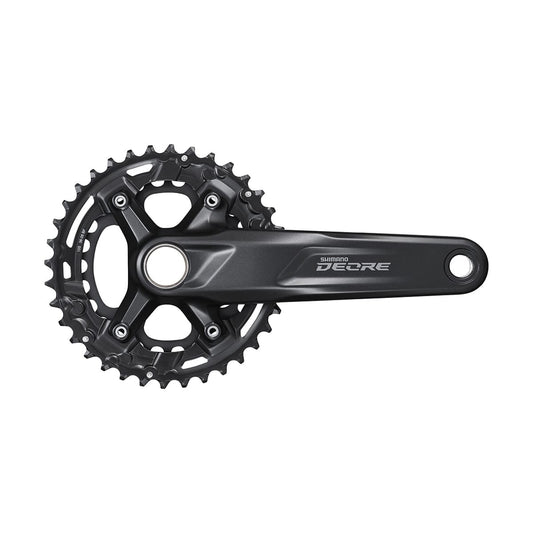

    • Pédalier 10/11V SHIMANO FC-M5100-1

      Mono crankset 10/11 Speed SHIMANO FC-M5100-1

      From 279,00 zł PLN
      From 279,00 zł PLN
    • RACE FACE AEFFECT CINCH crankset Black

      RACE FACE AEFFECT CINCH crankset Black

      233,00 zł PLN
      233,00 zł PLN

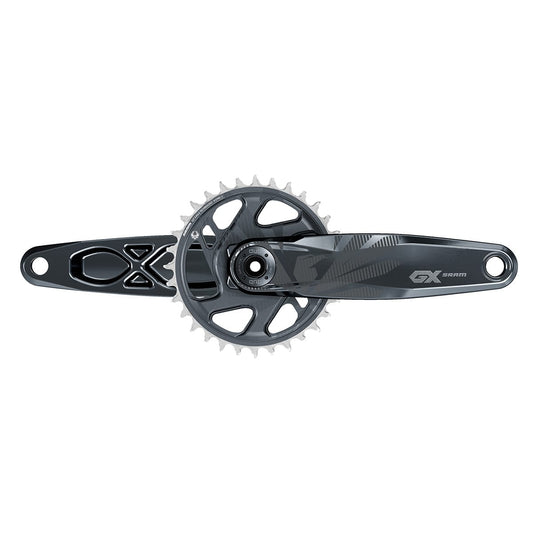

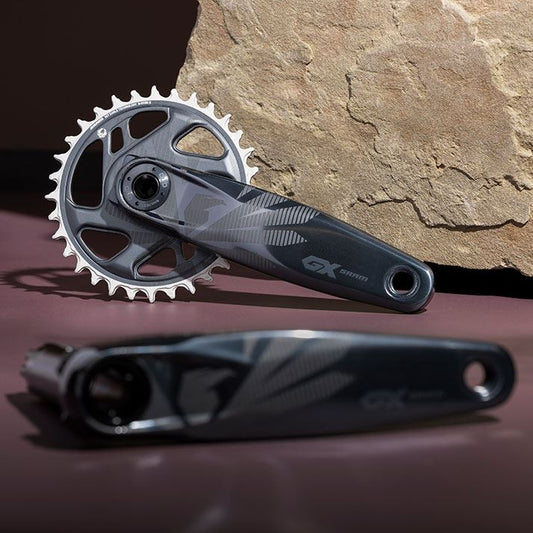

    • Pédalier 12V SRAM EAGLE GX DUB BOOST Lunar
