How to determine the wear level of a chainring?

How to determine the wear level of a chainring?

This question comes up fairly often, and while we try to answer it, unfortunately there is no magic answer. Indeed, MTB chainrings do not have wear indicators, and the different tooth designs across brands make it difficult to create a universal wear-checking tool.

A few methods for judging the wear of your chainring

  • The first is as simple as it is obvious: gears are unstable when the components are too worn. If you have just replaced your chain/cassette combination and your front derailleur is in good condition but the chainrings are not shifting smoothly — there is no doubt about it, the chainrings need replacing.

  • The second requires a new MTB chain. Place it on the chainring, pull on the chain, and at the highest point you should not be able to lift it by more than half a tooth of the chainring.

  • Finally, the manufacturers' recommendation: replace the cassette every 2 chains. And replace the chainrings every 2 cassettes. This does not apply to a single-chainring MTB drivetrain.

    Découvrez tous nos conseils & Tutoriels

    MTB - Chainrings

    • RACE FACE NARROW WIDE 9/10/11/12V 4-Bolt 104 mm Black Single Chainring

      Single Chainring RACE FACE NARROW WIDE 9/10/11/12S 4-Bolt 104mm Black

      213,00 PLN
      213,00 PLN

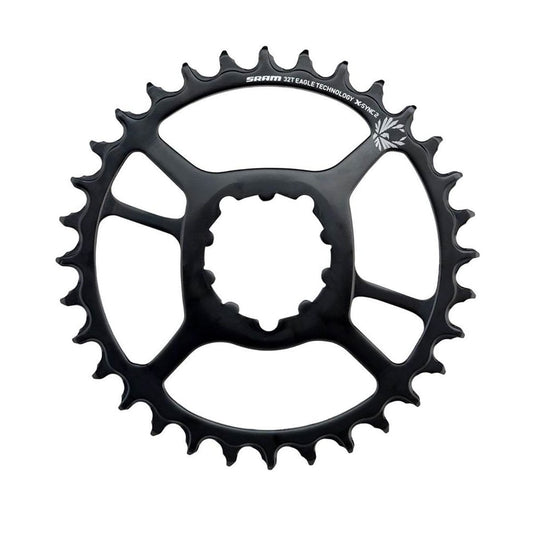

    • SRAM X-SYNC2 EAGLE BOOST 12V Direct Mount Offset 3mm Steel Black Single Chainring

      SRAM EAGLE X-SYNC 2 BOOST 11/12S Direct Mount 3mm Offset Steel Black Single Chainring

      From 76,00 PLN
      From 76,00 PLN

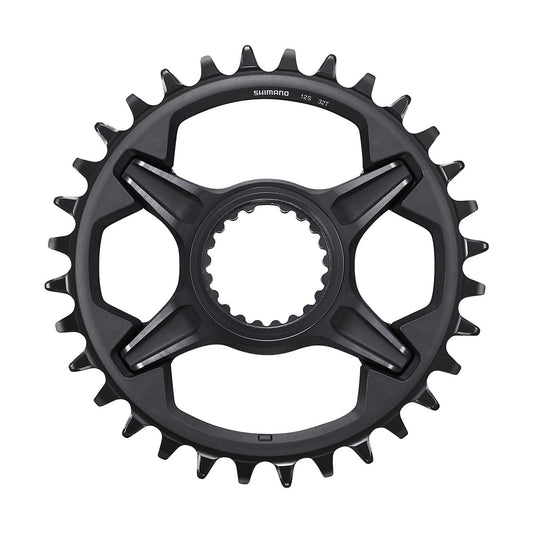

    • SHIMANO SLX M7100 12V Direct Mount Single Chainring

      SHIMANO SLX M7100 Single Chainring 12V Direct Mount

      166,00 PLN
      166,00 PLN

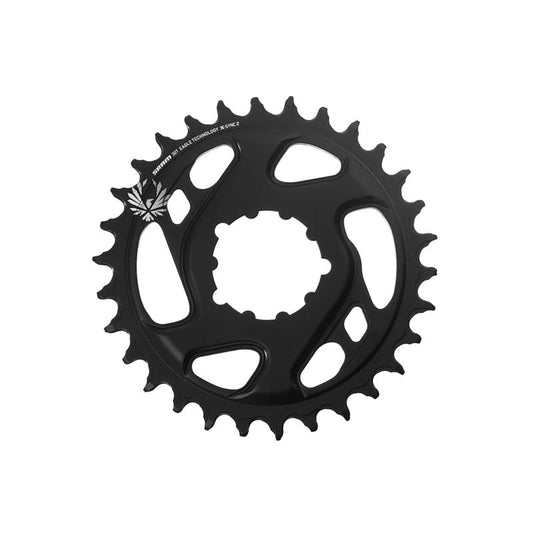

    • SRAM X-SYNC2 EAGLE BOOST 12S Direct Mount 3mm Offset Forged Aluminium Black Chainring

      SRAM EAGLE X-SYNC 2 BOOST 11/12S Direct Mount 3mm Offset Alu Black Single Chainring

      152,00 PLN
      152,00 PLN

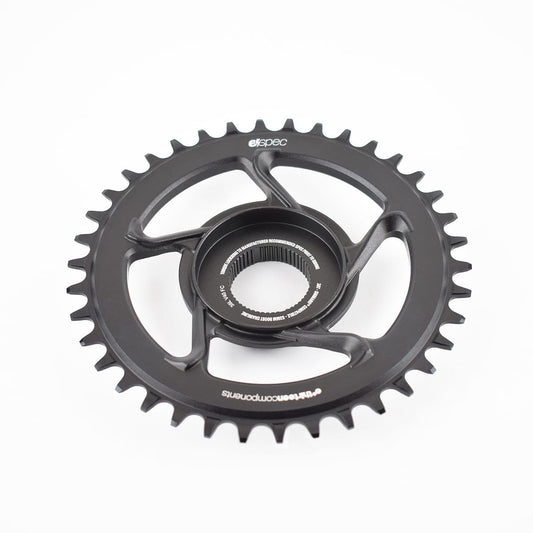

    • E-THIRTEEN E-SPEC Mono Chainring 11/12S Direct Mount Shimano E8000

      E-THIRTEEN E-SPEC Mono Chainring 11/12S Direct Mount Shimano E8000

      308,00 PLN
      308,00 PLN

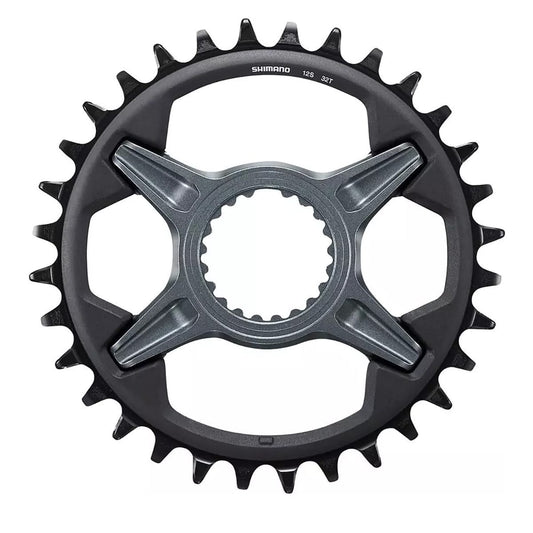

    • SHIMANO XT M8100 12S Direct Mount Single Chainring

      SHIMANO XT M8100 Single Chainring 12V Direct Mount

      284,00 PLN
      284,00 PLN

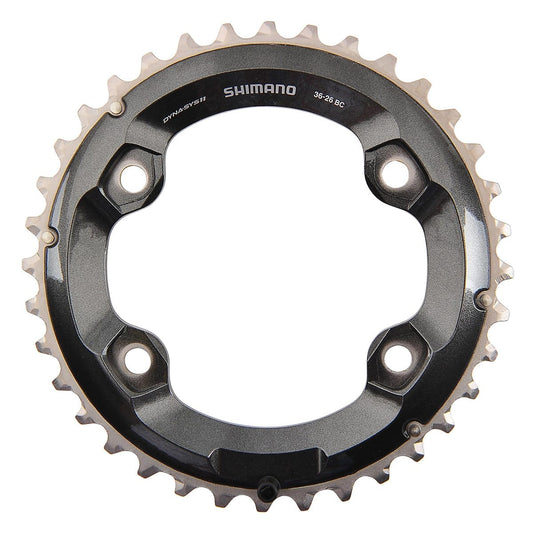

    • SHIMANO XT M8000 11S Double Outer Chainring 4 Holes 96 mm
