CAMPAGNOLO

CAMPAGNOLO ZONDA DISC Tubeless Ready front wheel (Center Lock)

Réf. fabricant : WH17-ZOCDF2A
Visit CAMPAGNOLO ZONDA DISC Front Wheel with Tires (Center Lock) is a benchmark among aluminum wheels for disc brakes. Designed specifically for bikes with... Read more
1.310,00 zł PLN
1.310,00 zł PLN
View full details

Description

Visit CAMPAGNOLO ZONDA DISC Front Wheel with Tires (Center Lock) is a benchmark among aluminum wheels for disc brakes.

Designed specifically for bikes with disc brakes, its redesigned structure offers optimum responsiveness thanks to asymmetrical rims and hubs. Mega G3™. This design improves front-wheel stability in the face of braking torque and maximizes power transfer to the rear.

Its new asymmetrical profile (26-28 mm) ensures better balancing of spoke tensions between the transmission and braking sides. Milled machining reduces perimeter weight, making the wheel more responsive. The RDB™ - Rim Dynamic Balance system ensures perfect weight balance, while the Rim Dynamic Balance MoMag™ technology improves rigidity and lightness.

The 21 stainless steel spokes and geometry Mega-G3™ geometry geometry enhance stiffness and responsiveness, especially under heavy braking.

The Campagnolo Zonda Disc guarantees long-lasting performance and versatility.

Manufacturer's manual

Ref: 9307217101149

Informations techniques

┘GENERAL
Front axle dimension: 12x100mm
Internal width: 22mm
Height: 24/27mm
Disc: Center Lock
Weight: 1675g
Part Number : WH17-ZOCDF2A

┘JANTES
Rim height: 24/27mm
Rim material : Aluminum
Internal rim width: 22 mm
Details: Bright Label
Tires: Tubeless and Tubetype (2-WAY-FIT)

┘RAYONS
Spokes:
- 14 stainless steel spokes with 2/1.6/2 mm cross-section (left side - brake side)
- 7 stainless steel spokes with 2/1.6/2 mm cross-section (right-hand side)
Lacing: Mega-G3
Nipples: Aero Mo-Mag aluminum, self-locking, internal

┘MOYEU

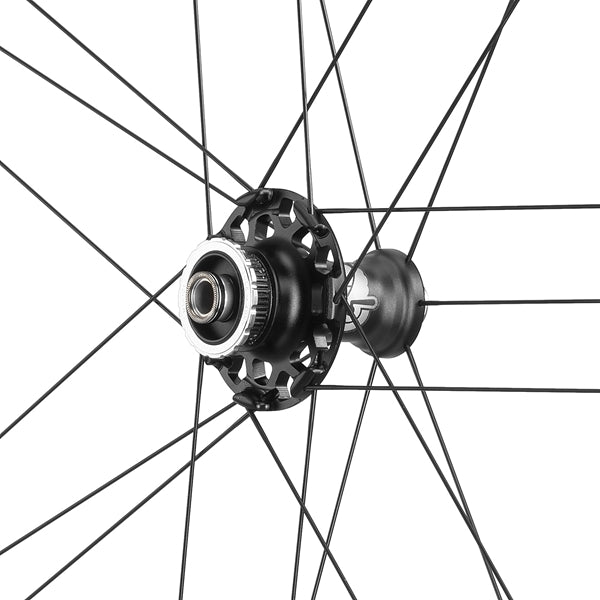

Hub type: aluminum hub with oversized flanges
Hub width:100
Axle type: 12 mm aluminum through axle
Bearings : Steel, cone/cuvette

┘ ASSEMBLY & TECHNOLOGIES
► The Zonda Disc Brake Wheel is assembled entirely by hand by a specialized Campagnolo® worker and 100% controlled through an electronically controlled tool. This process guarantees the maximum performance and rock-solid reliability of all Campagnolo® wheels;
► Asymmetrical technology optimizes spoke tension balancing, improving symmetry, efficiency and responsiveness between transmission and braking ;
► RDB™ technology balances the weight of the valve with an opposing counterweight, ensuring smooth, stable rotation for improved performance;
► Thanks to MoMag™ technology, the hole-free external profile improves rigidity and reduces weight, optimizing wheel reliability and efficiency;;
► MEGA-G3™ technology enhances stiffness and responsiveness, stabilizing front braking and maximizing rear transmission, with a racing design ;

┘INCLUSIVE
User guide
