PRIDE

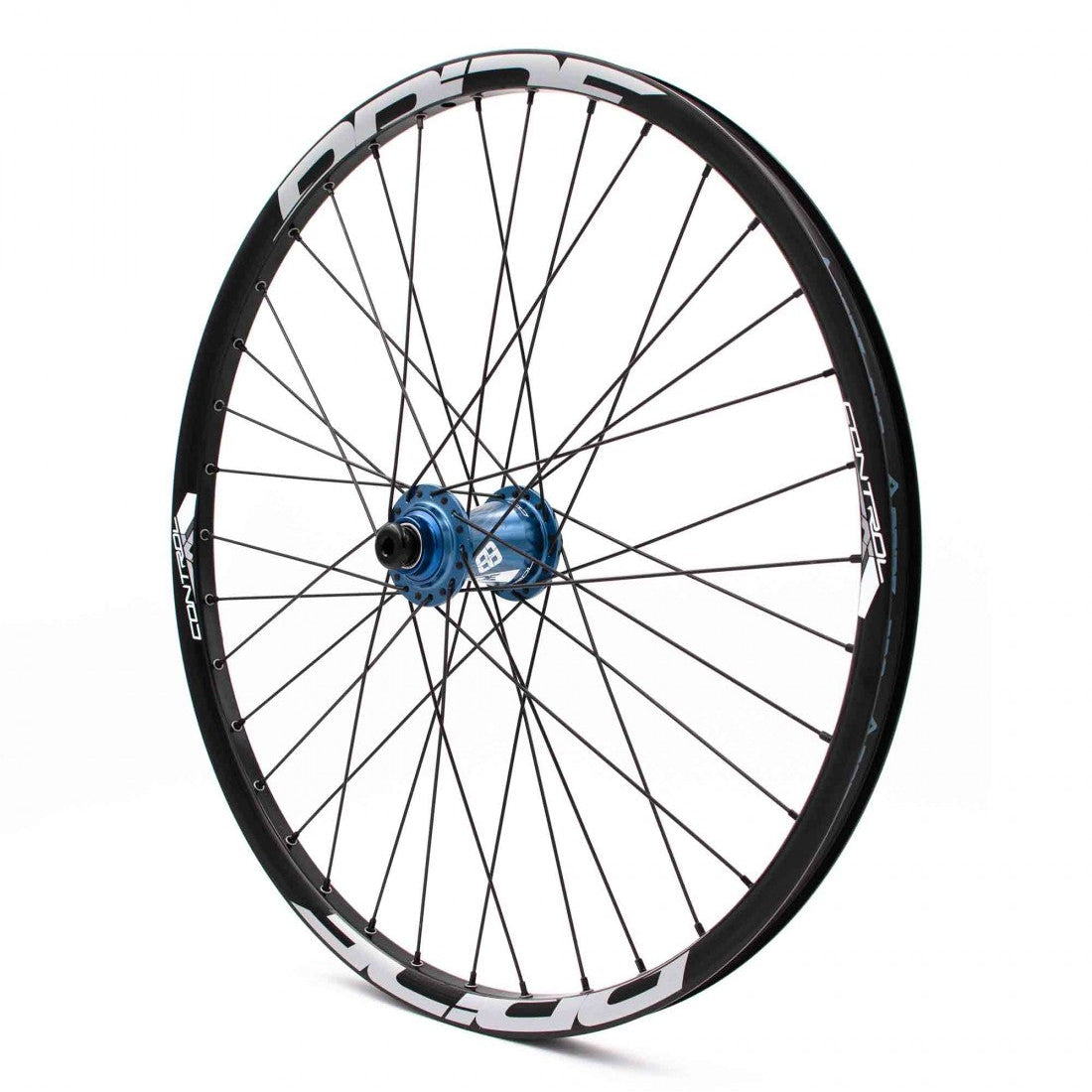

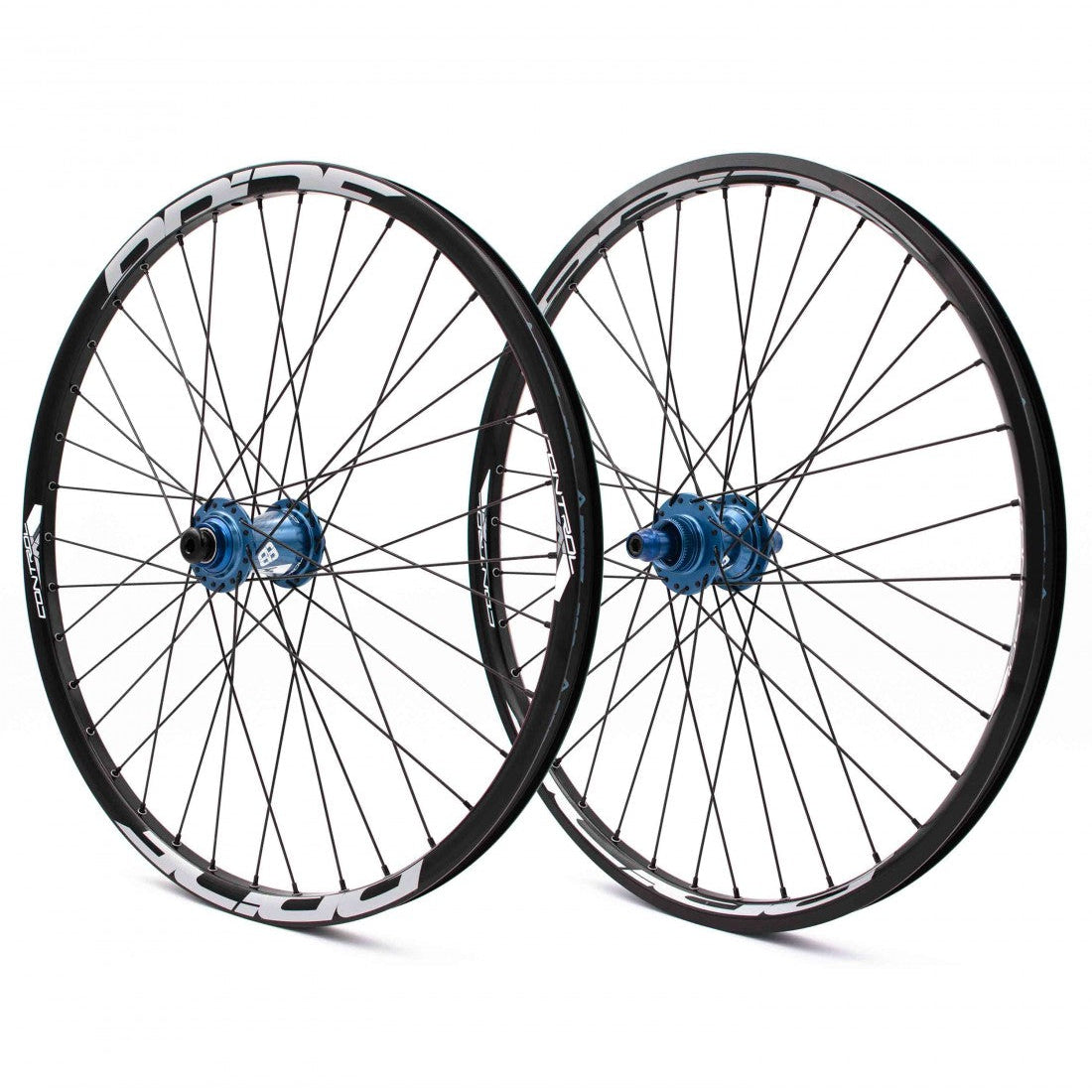

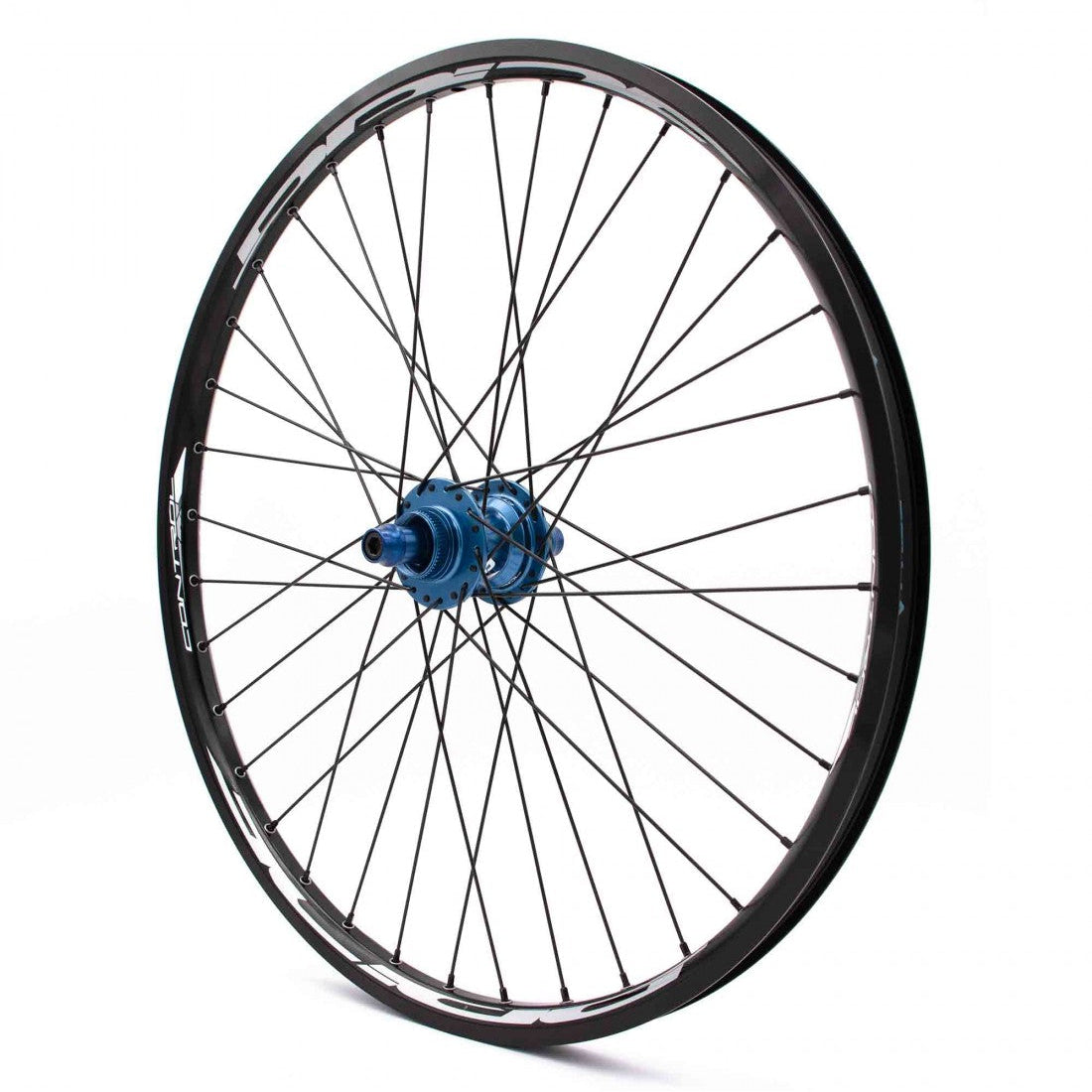

PRIDE 24" (507mm) Control V1 V-Brake/Disc Wheel Set 20/10mm Axles Blue

The PRIDE Control V1 24" (507mm) Wheel Set is developed for BMX Race Cruiser riders looking for a reliable, high-performance set that meets the... Read more
2.370,00 PLN
2.370,00 PLN
View full details

Description

The PRIDE Control V1 24" (507mm) Wheel Set is developed for BMX Race Cruiser riders looking for a reliable, high-performance set that meets the demands of competition. The combination of Control Cruiser 6061-T6 aluminium rims and Control hubs offers an excellent balance between weight, efficiency and strength.

The rims feature a double-wall construction with a 19 mm profile height and a 36-spoke build, ensuring good rigidity during acceleration and landing phases. Their V-Brake and disc brake compatibility offers great versatility depending on the BMX configuration used.

The PRIDE Control V1 6061-T6 aluminium hubs integrate a high-performance engagement system made up of 6 micro-toothed pawls delivering 180 engagement points. This technology ensures fast re-engagement out of corners and from standing starts. The pair is offered with a distinctive blue finish and ready-to-ride BMX Race assembly.

Ref: 15986273485180

Technical information

Technical specifications – Rims
Model: PRIDE Control Cruiser
Diameter: 24" (507 mm)
ETRTO standard:
Front: 23-507
Rear: 24-507
Material: 6061-T6 Aluminium
Construction: Double wall
Number of spokes: 36 spokes
Rim height: 19 mm
Rim width:
Front: 27 mm
Rear: 28 mm
Brake compatibility: V-Brake and disc brake
Valve type: Schrader
Tyre compatibility: 28 to 65 mm

Technical specifications – Hubs

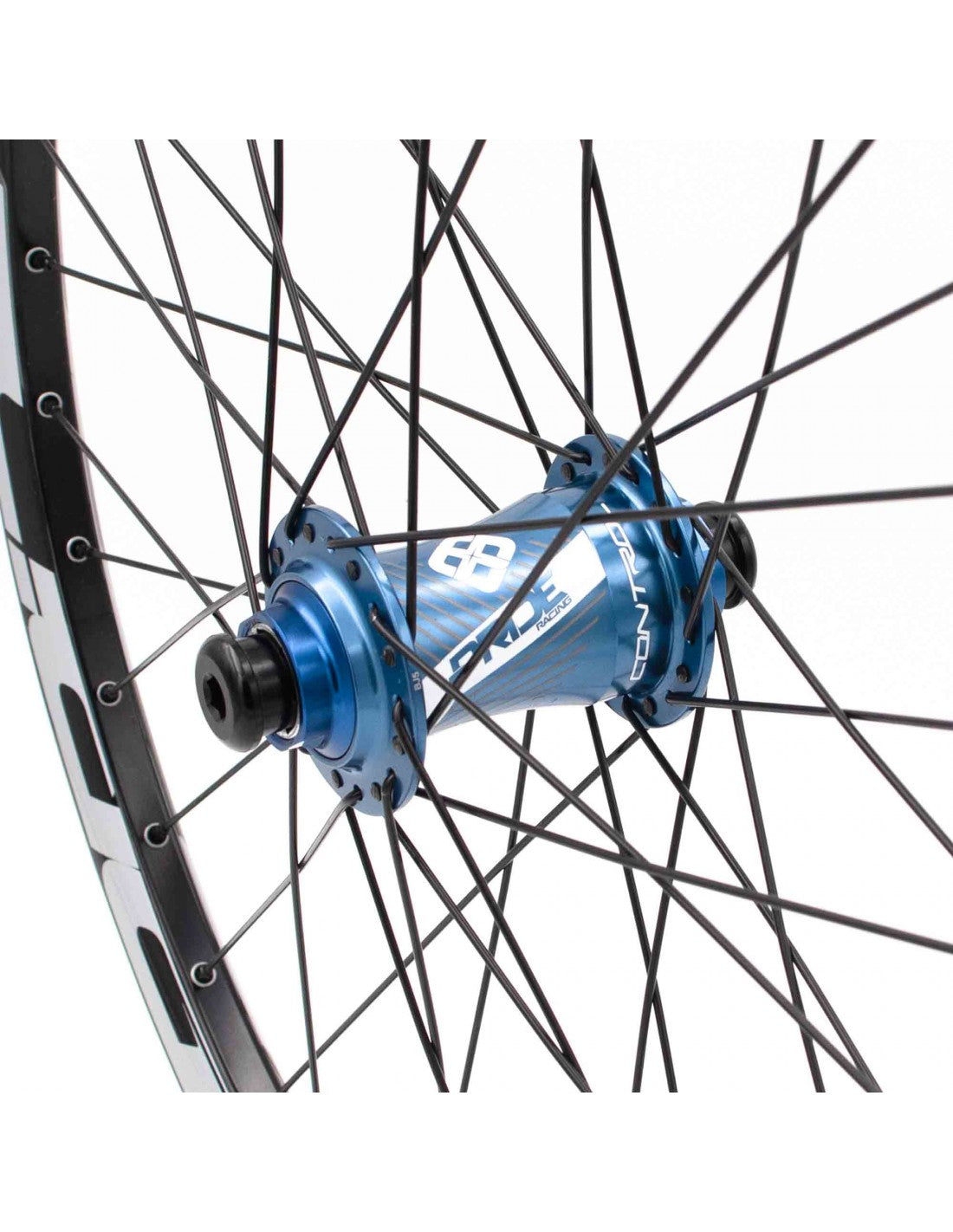

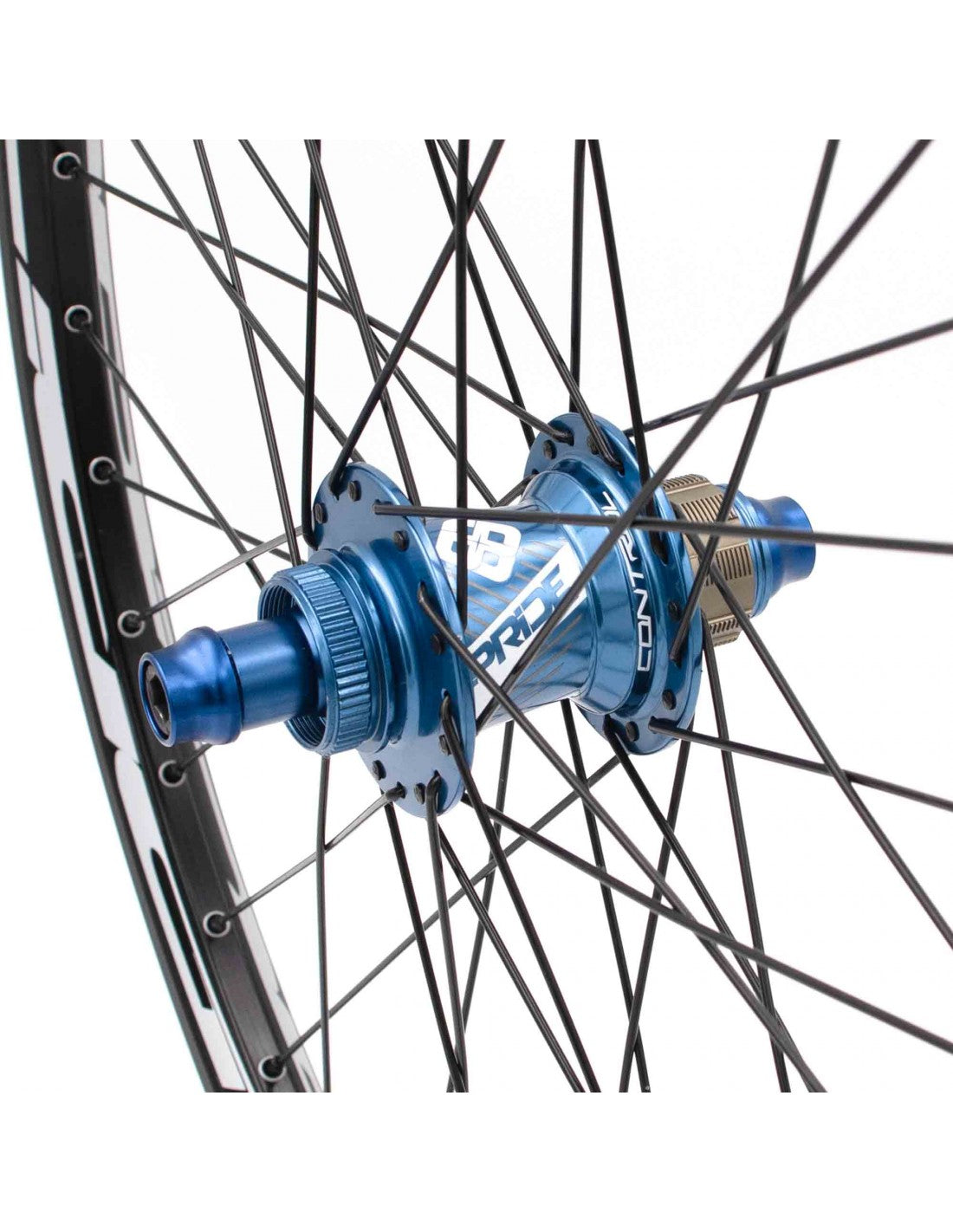

Model: PRIDE Control V1
Material: 6061-T6 Aluminium
Front hub spacing: 20 x 100 mm
Rear hub spacing: 10 x 110 mm
20 mm front axle not included
Freehub body standard: Shimano
Engagement system: 180 points / 6 pawls
Disc mount: Center Lock
Front bearing: 6805
Rear bearing: 6902

Weight
Front wheel: 904 g
Rear wheel: 1085 g
Total pair weight: 1989 g

Additional information
Type: Front + rear wheel pair
Use: BMX Race Cruiser
Diameter: 507 mm
Material: Aluminium
Hub colour: Blue
The rear wheel comes with a lock ring and spacers to adjust the chainline
Rim tape not included
;
