ENDURO BEARINGS

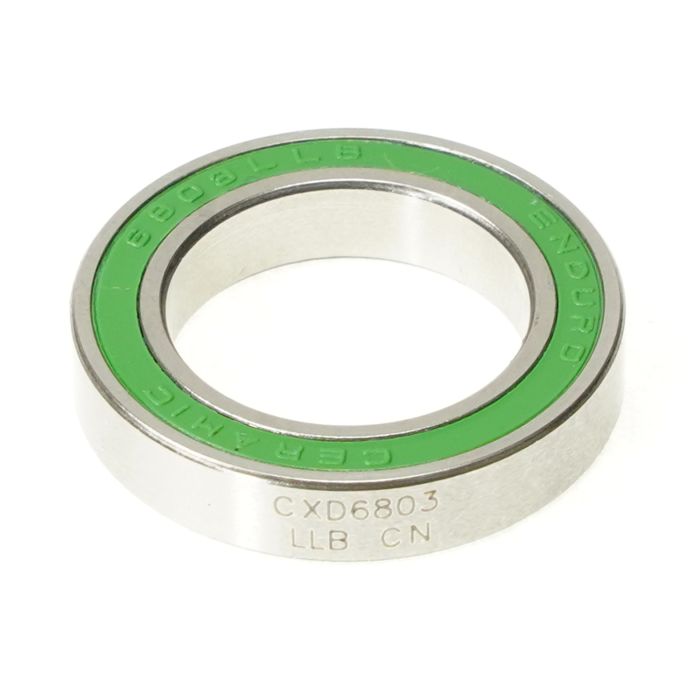

ENDURO BEARINGS CXD 6803 LLB C3 Bearing - XD-15 Ceramic - 17x26x5 mm

The ENDURO BEARINGS CXD 6803 LLB C3 bearing represents the brand's top of the range thanks to its XD-15 Ceramic-Hybrid technology. It combines nitrogen... Read more
Regular price 591,00 PLN
Regular price Sale price 591,00 PLN
View full details

Description

The ENDURO BEARINGS CXD 6803 LLB C3 bearing represents the brand's top of the range thanks to its XD-15 Ceramic-Hybrid technology. It combines nitrogen steel raceways XD-15 cryogenically treated with Silicon Nitride Grade 5 ceramic balls, offering particularly smooth operation, excellent corrosion resistance and exceptional durability.

Its deep-groove design allows the use of large-diameter balls to increase the contact surface, thereby improving performance and longevity. The LLB double-lip seals form an effective barrier against water, dust and contaminants while durably retaining high-performance grease.

Primarily designed for hubs, this ABEC-5 bearing stands out for its ability to become smoother with use. Thanks to its hybrid ceramic design and exceptional wear resistance, it is a premium solution for cyclists seeking maximum reliability and performance.

Ref: 15994414203260

Technical information

Reference: EB8939
Model: CXD 6803 LLB C3
Bearing type: Deep groove radial
Technology: XD-15 Ceramic-Hybrid
Dimensions: 17 x 26 x 5 mm
Inner diameter: 17 mm
Outer diameter: 26 mm
Width: 5 mm
Tolerance: ABEC-5
Internal clearance: C3
Balls: Silicon Nitride Ceramic Grade 5
Races: XD-15 nitrogen anti-corrosion steel
Seal: LLB double lip (labyrinth)
Grease: Kluber NBU52 (90% fill)
Corrosion resistance: Very high
Wear resistance: Very high
Static load: 1.87 kN (308 lbf)
Weight: 7 g
Main applications: Wheel hubs
