FAVERO ELECTRONICS

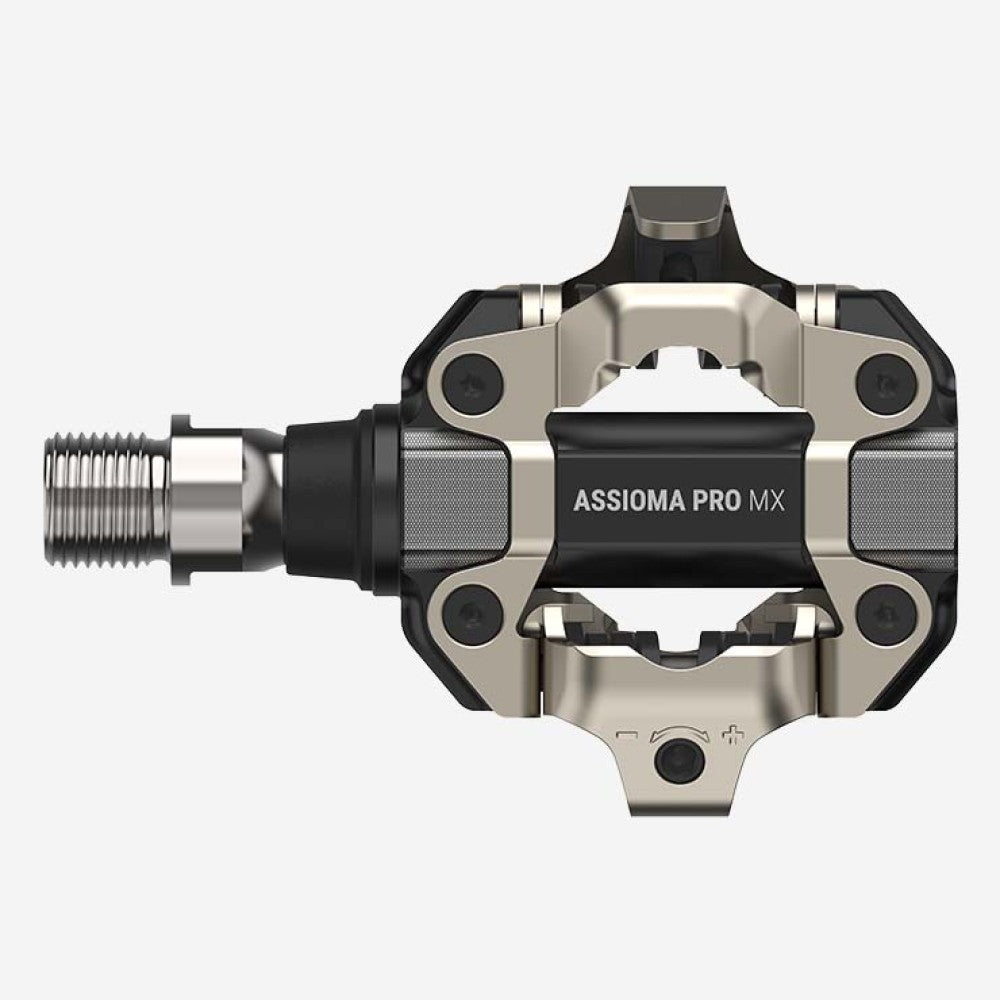

FAVERO ASSIOMA PRO MX right pedal without power sensor

The FAVERO ASSIOMA MX Right Pedal without power sensor is a replacement part designed for MOUNTAIN BIKES. Ideal for replacing a worn pedal, it... Read more
493,00 zł PLN
493,00 zł PLN
View full details

Description

The FAVERO ASSIOMA MX Right Pedal without power sensor is a replacement part designed for MOUNTAIN BIKES. Ideal for replacing a worn pedal, it offers the same build quality and compatibility as the original ASSIOMA MX model.

Kit includes a straight pedal without sensor and two washers for optimum mounting. Delivered fully assembled, it allows quick and easy installation on your bike.

► Manufacturer's manual

► Technical details and exploded view

Ref: 14991122203004

Informations techniques

► The product is delivered pre-assembled

┘GENERAL
- Part Number : 773-10-25
- Total weight pedal with sensor : 191,4g
- Water resistance: IP67
- Maximum rider weight: 120kg
- Shims: Shims supplied (art. 773-00-62), Shimano® Shims SM-SH51┌

┘DIMENSIONS & FEATURES
- Pedal axle thread: 9/16"-20 tpi
- Bearings: 2x needle bearings (Dynamic load > 400 kg per
bearing, 1x technopolymer thrust washer
- Pedal axle material: AINSI 630 stainless steel
- Support height:
Pedal stack height: 11.2 mm
Shimano cleat height: 6.0 mm
_Total stack height: 17.2 mm

┘POWER SENSOR
- Power sensor on right pedal for mountain bikes and gravel
- Pedal weight with power sensor: 191.4 g
- Cadence sensor: internal, integrated
- Gyroscope: internal, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- Pedaling analysis: yes
- Battery: lithium-ion, rechargeable
- Operating time: at least 60 hours
- Communication: ANT+, Bluetooth
- Data available via ANT+ or Favero Assioma App:
_Power
_Cadence
_PCO (Platform Center Offset)
_TE (Torque Efficiency)
_PP (Power Phase)
_PS (Pedaling smoothness)
_RP (Sitting/dancing position) not on the Favero Assioma Appliance
- Data available via Bluetooth :
_Power
_Cadence
- Power measurement accuracy: ±1%.
- Temperature compensation: -10°C / + 55°C
- Minimum and maximum power: 0 - 3000 W
- Minimum and maximum speed: 10 - 250 rpm┌

┘INCLUDED
- 1x right pedal without power sensor
- 2x washers┌

Informations prix

Supplier suggested retail price in January 2025
