FOX RACING SHOX

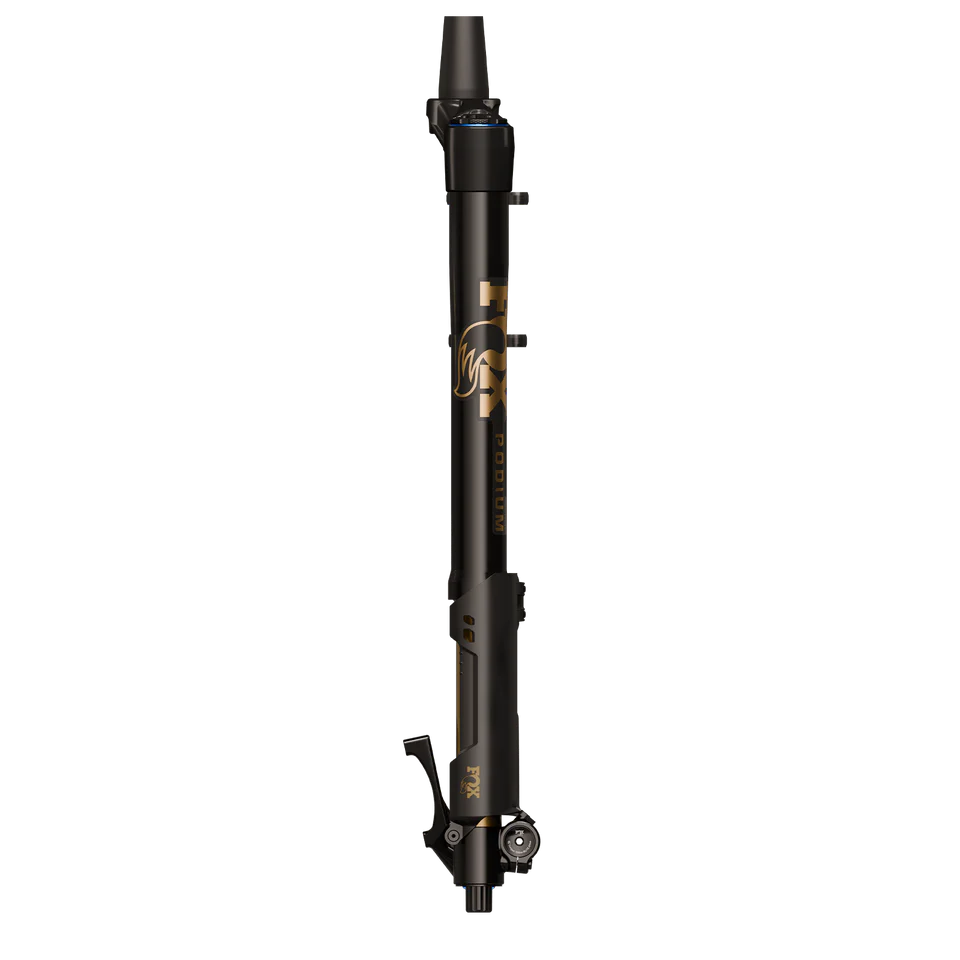

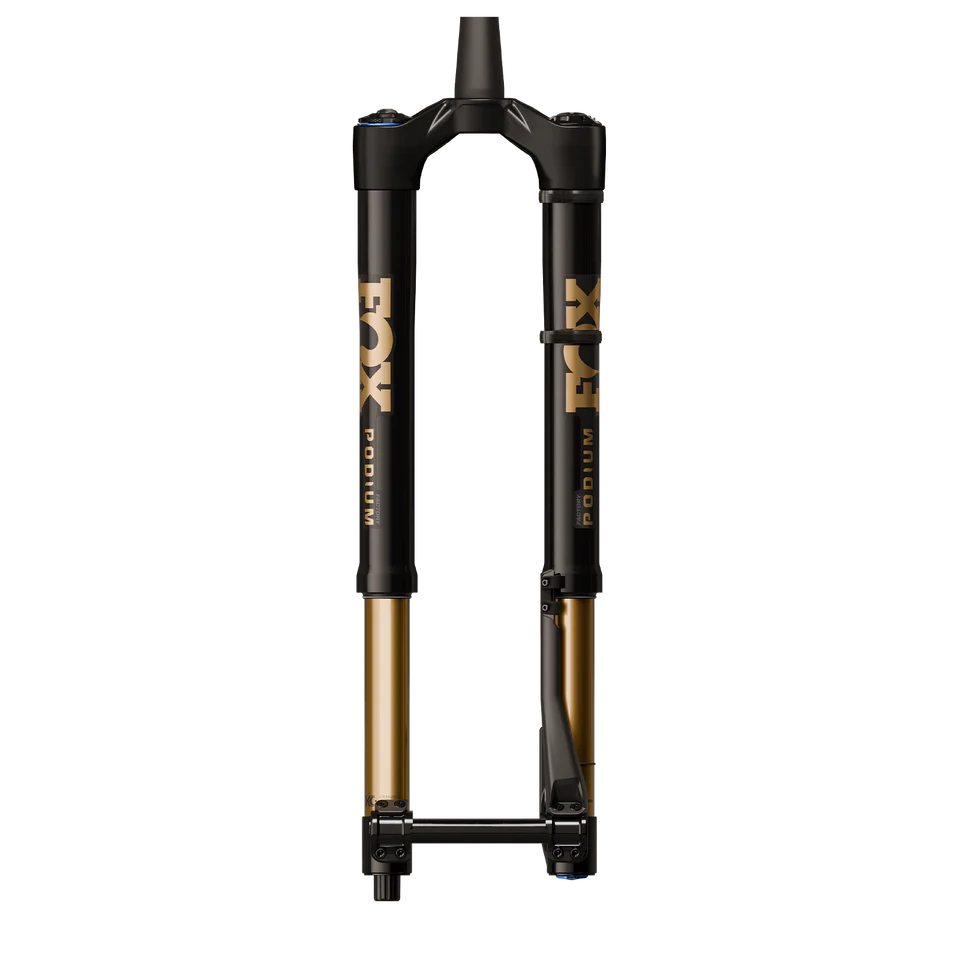

FOX PODIUM FACTORY 29" Grip X2 Axle 20x100mm 2026

The fork FOX PODIUM FACTORY 29" Grip X2 redefines the standards for single-tee forks. Designed to be driven like a downhill fork, it offers... Read more
Regular price 11.187,00 zł PLN
Regular price Sale price 11.187,00 zł PLN
View full details

Description

The fork FOX PODIUM FACTORY 29" Grip X2 redefines the standards for single-tee forks. Designed to be driven like a downhill fork, it offers absolute confidence, even in the fastest sections or the most committed jumps. Thanks to its innovative design, it retains familiar travel and geometry while offering stiffness and performance worthy of double-tee models.

The absence of an arch on an inverted fork has historically posed a challenge in terms of stiffness. FOX has responded with an oversized steel Boost DH axle (20 x 110 mm), guaranteeing optimum torsional rigidity. This technical choice has been validated by extensive blind tests carried out by FOX engineers and athletes.

The air spring GlideCore air spring reduces friction by dynamically adapting to loads. Thanks to large-diameter nitrile bushes, it controls lateral and axial movements, ensuring smoother suspension action and limiting fatigue on long descents.

The shock absorber GRIP X2shock absorber is custom-tuned. It offers more compression support to compensate for the low friction of the chassis. The result: the rider stays higher in the travel, gains traction in corners and retains energy longer. The numerous possibilities for customized compression and rebound settings will delight technicians, fastidious enduro riders and competitors alike.

With its oversized 47 mm, 36mm coated plungers Kashima Coat and reinforced tee, the FOX Podium approaches the rigidity of a FOX 40. It's a fork designed to push the limits, while retaining the maneuverability of a single-crown chassis.

User manual.

Ref: 15407042331004

Informations techniques

58mm (58HT) pivot diameter for muscular MTBs.
68mm (68HT) pivot diameter for E-bikes.

Inverted frame;
Spring: Air Float Evol Glidecore / Hydraulic: Cartouche Grip X2 - HSC, LSC, HSR, LSR adjustments:
High-speed trigger: 8 clicks ;
Low-speed trigger: 16 clicks;
High-speed compression: 8 clicks;
Low-speed compression: 18 clicks;
23 internal valves (instead of 7 on the Grip2);
Bleeders;
Base valve diameter increased to 24mm (20mm on Grip2);
20x110 mm DH Boost axle (Black);
Plungers: 36mm, Kashima treatment ;
47mm sheaths;
For 29" wheels;
Tapered pivot 1''1/8-1.5'' ;
Pivot length: 243mm ;
Postmount brake mounting 200mm (max 230mm) ;
Offset: 44mm;
Compatible with specific Fox mudguard (not supplied);
Weight (manufacturer): 2695g.

Includes:
Steering star
Carbon diver protectors
Hose clip
6x volume shims
Fox manual and sticker.

Manufacturer references :
910-21-401 in 160mm/58HT
910-21-400 in 170mm/58HT
910-21-399 in 160mm/68HT
910-21-398 in 170mm/68HT

Informations prix

Recommended retail price June 2025
