MICHE

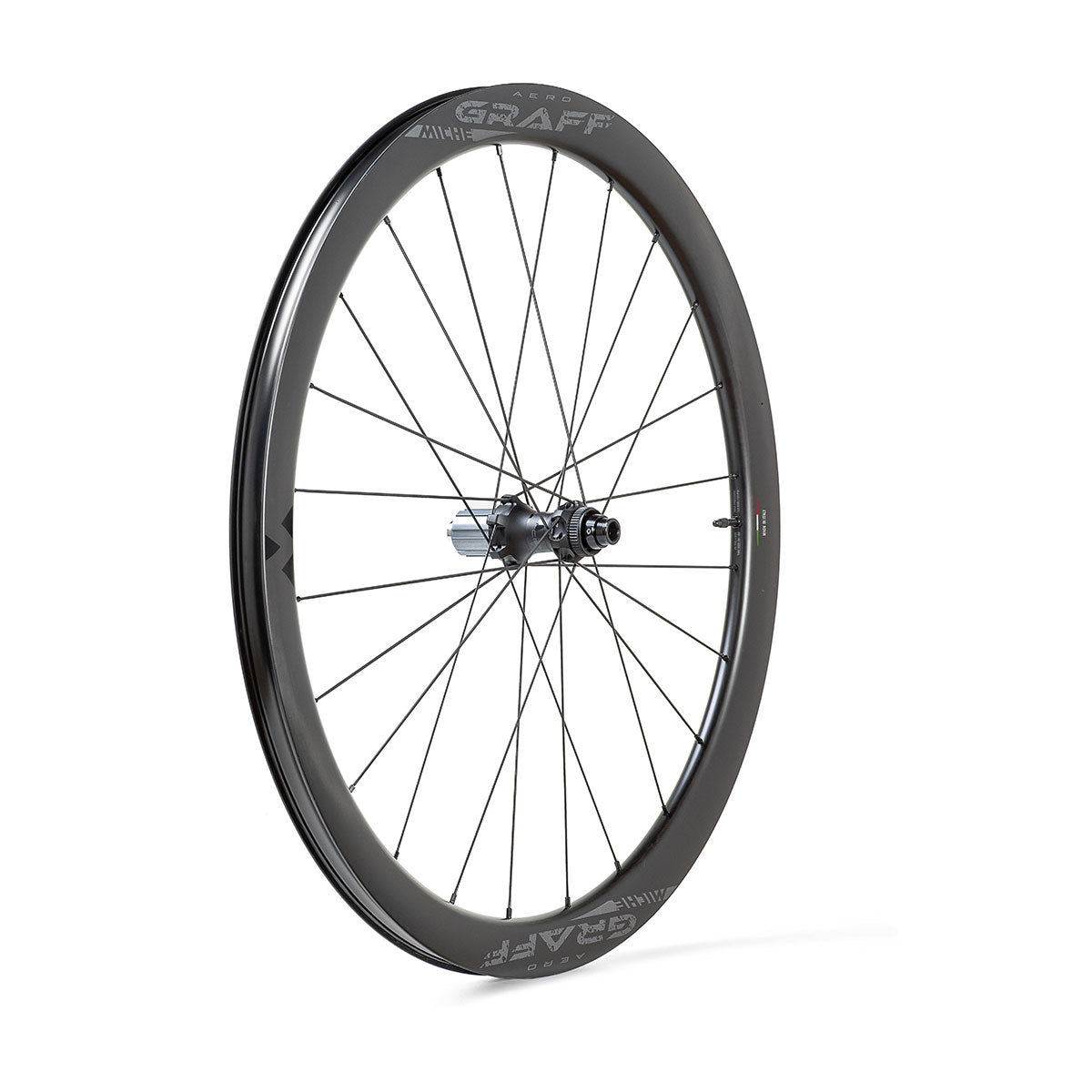

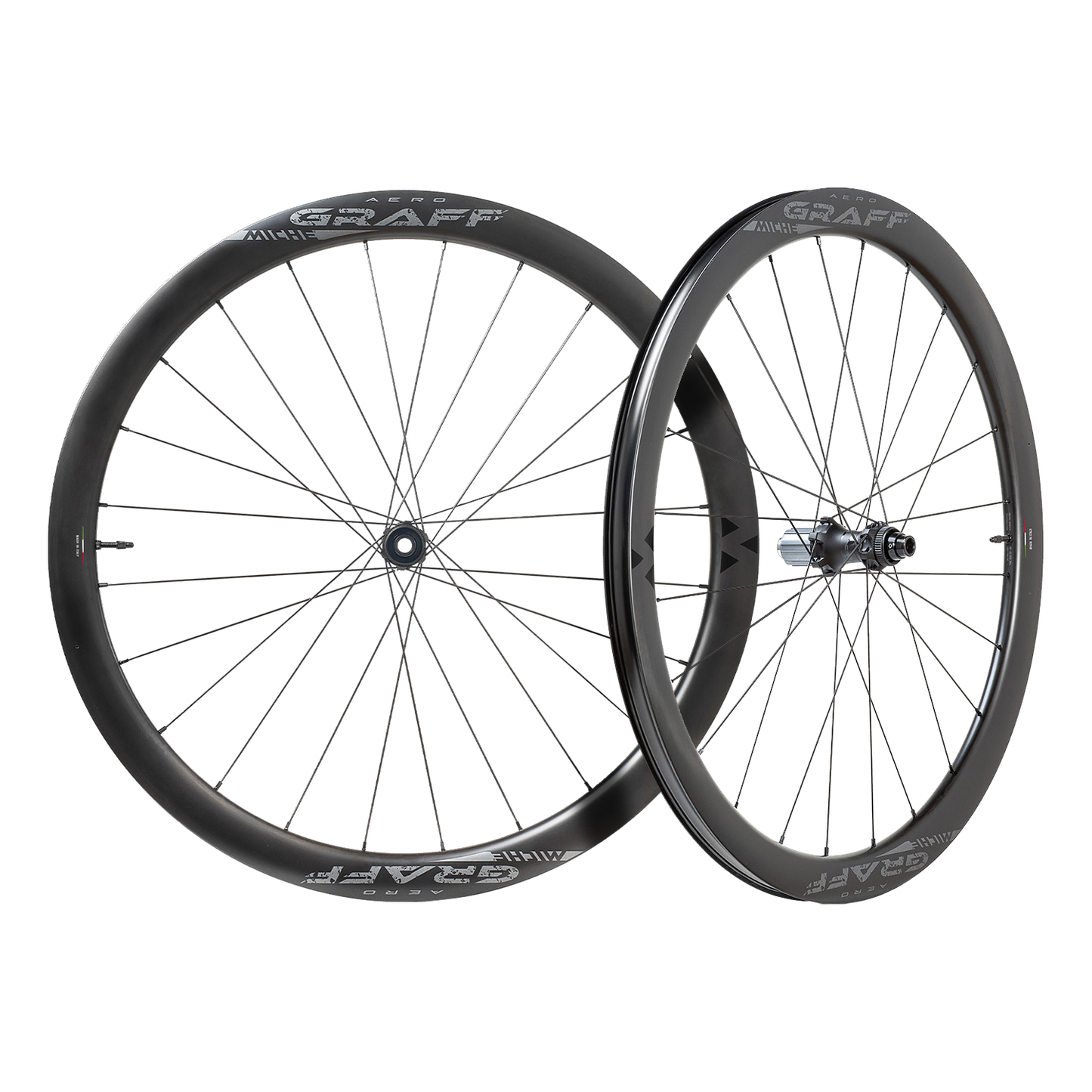

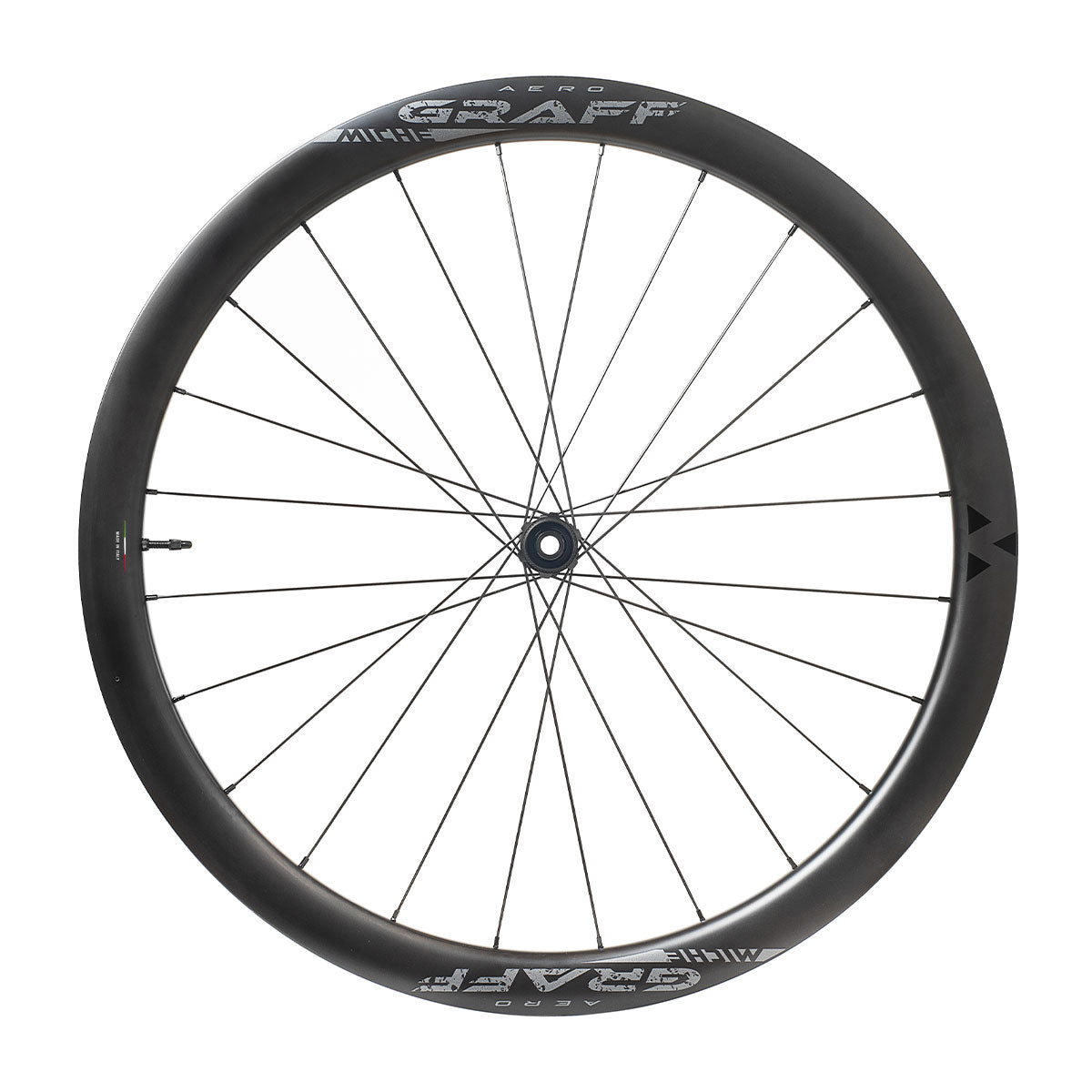

MICHE GRAFF AERO DISC Tubeless Ready (Center Lock) Wheel Pair

Manufacturer ref.: WHGRA0
The MICHE GRAFF AERO DISC Tubeless Ready wheels are designed to deliver high-level performance on Gravel bikes, as demonstrated by their testing in official... Read more
5.672,00 PLN
5.672,00 PLN
View full details

Description

The MICHE GRAFF AERO DISC Tubeless Ready wheels are designed to deliver high-level performance on Gravel bikes, as demonstrated by their testing in official UCI races. Their T700 carbon fibre rim with a symmetrical 42 mm profile provides a perfect balance between aerodynamics, stiffness and resistance, ideal for demanding terrain.

With an internal width of 25 mm and Hookless Tubeless Straight Side technology (ISO 5775-2), they guarantee optimal compatibility with modern tubeless tyres, improving grip and comfort. The CR aluminium 7075-T6 hubs, fitted with a freehub body with steel pawl support, offer exceptional durability and extended compatibility (SH MicroSpline, HG, XDR, N3W not included).

The 12+12 double-thickness Superlight aerodynamic spoke pattern achieves a total weight of just 1,580 grams, guaranteeing excellent responsiveness and optimal smoothness on all terrain.

Ref: 15082039607676

Technical information

┘GENERAL
Weight (manufacturer) Pair: 1580g
ASTM: category 2
Maximum load: 108 kg

┘RIM
Material: UD Carbon T 700 symmetrical
Height: 42 mm
Internal width: 25 mm
Drilling: 24 holes
ETRTO size: 622x25
Tyre compatibility: Tubeless
Minimum tyre size: 30mm width
Maximum tyre size: 50mm width
Max pressure: 3.8 bar.

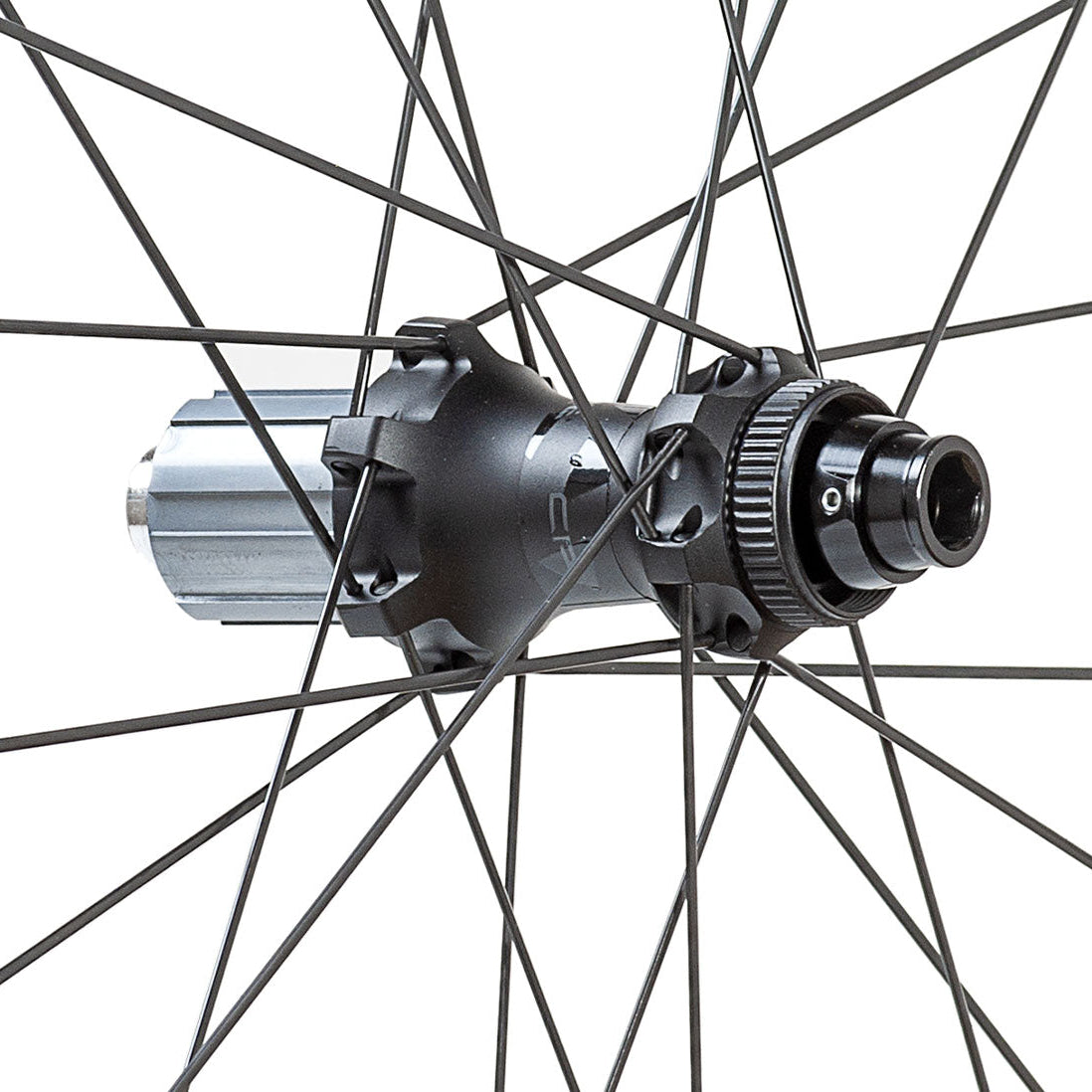

┘HUBS
Body material: Aluminium AL 7075 T6
Disc standard: Center Lock®
Axle size: front 12x100 / rear 12x142
Freehub technology:
RES 30 Rapid Engagement System
Freehub: Shimano HG road - Aluminium alloy AL 7075 T6 and Steel
Bearing technology: MICHE® 2RS

┘SPOKES
Material: Stainless steel
Shape: Aero, straight pull, double butted
Nipples: AL 7075 T6 / Black
Spoking: 24 / Cross

┘KEY TECHNOLOGIES
► RES 30 RAPID ENGAGEMENT: Miche's RES 30 Rapid Engagement System technology optimises hub engagement with 30 engagement points, delivering maximum reactivity and power transfer;
► MICHE®2RS: MICHE® 2RS technology uses double-sealed bearings, ensuring optimal protection against dust and moisture, providing smoothness, durability and low maintenance;

┘INCLUDED
User guide
Wheel bag
External Centerlock lockring
CL>IS6 adapter

┘COMPATIBLE REFERENCES
► Shimano HG Freehub Body: FWSW0BS
► XDR Freehub Body: FWSW0BX
► Campagnolo N3W Freehub Body: FWSW0BN
;

Price information

*Supplier recommended retail price in January 2025
