ROCKSHOX

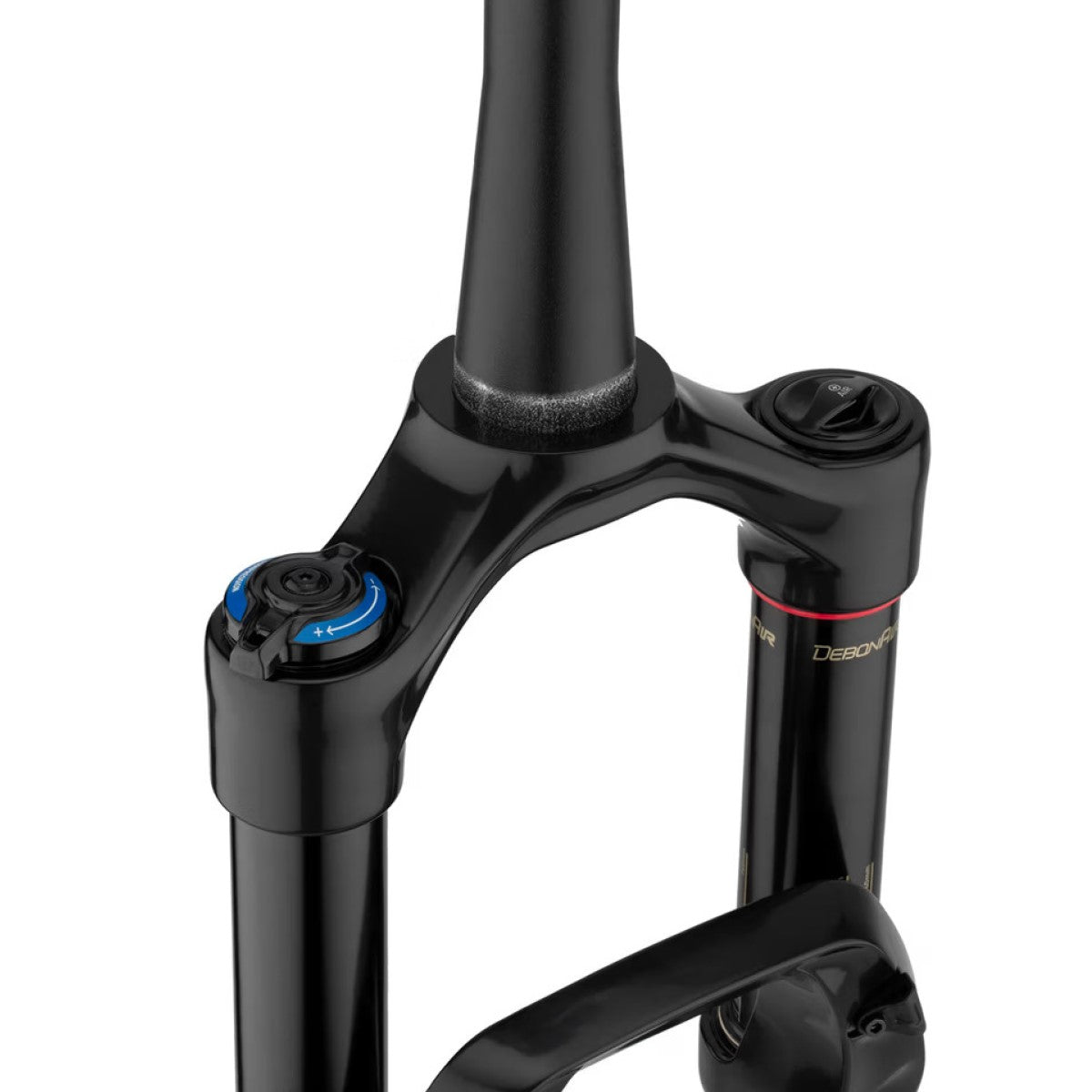

ROCKSHOX REVELATION RC 27.5 DebonAir Tapered 15x110 mm Boost Black Fork

Réf. fabricant : 00.4020.562.002
With its 140 mm of travel and new 35 mm stanchions, the ROCKSHOX Revelation RC DebonAir fork is a versatile model best suited for... Read more
1.891,00 PLN
1.891,00 PLN
View full details

Description

With its 140 mm of travel and new 35 mm stanchions, the ROCKSHOX Revelation RC DebonAir fork is a versatile model best suited for All Mountain MTB rides. Ultra-stiff, its new chassis is inspired by that of the Pike, and its Boost format allows tyres up to 2.8" in width, all providing very solid support on aggressive rides!

The Revelation integrates the Motion Control RC damper system, which specifically meets the demands of All Mountain riding and offers low-speed rebound and compression adjustment, as well as a lockout mode. Furthermore, the Revelation also benefits from the large-volume DebonAir pneumatic spring, which offers more support throughout the travel, a more linear action for greater control and is very responsive on small bumps

Ref: 9357156712797

Points forts

Linear Debonair spring sensitive to small impacts while providing better support throughout the travel

Motion Control RC technology

Bottomless Tokens to adjust air volume

Superior Boost chassis stiffness for greater control

Boost format.

Informations techniques

Discipline: All Mountain
Type: Single
Wheel Sizes: 27.5"
Front Wheel Axle: 15x110 mm (Boost)
Lockout: None
Colour: Black
Travel: 140 mm
Variable Travel: No
Offset: 46 mm
Max Rotor Diameter: 220 mm
Min Rotor Diameter: 180 mm
Steerer Diameter: Tapered 1.5"-1"1/8
Stanchion Diameter: 35 mm
Brake Mount: Postmount
Fork Height:
532 mm
Steerer Length: 265 mm (cuttable)
Steerer Material: Aluminium
Stanchions: Aluminium Fast Black Black treatment
Lowers: Magnesium
Adjustable Air Volume: Yes

Debonair spring — linear and sensitive on small impacts, providing better support throughout the travel
Motion Control RC cartridge
Bottomless Tokens to adjust air volume
Maxle Stealth axle

Low-Speed Compression Adjustment: Yes
High-Speed Compression Adjustment: No
Low-Speed Rebound Adjustment: Yes
High-Speed Rebound Adjustment: No
Preload Adjustment: Yes
Spring: Air

E-MTB Compatible
Tyre compatibility: up to 2.8" section in 27.5" without mudguard

Manufacturer reference:
00.4020.562.002



;
