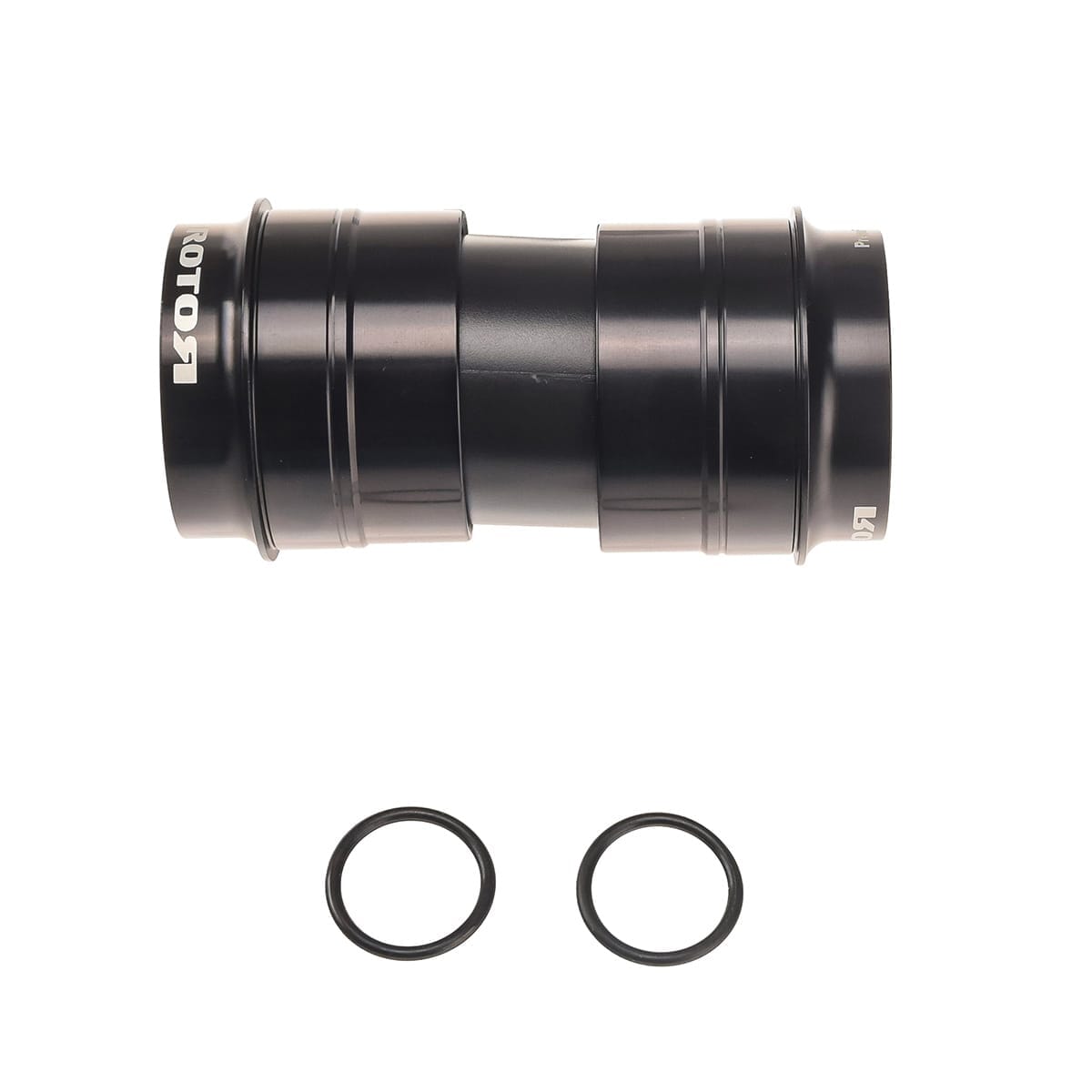

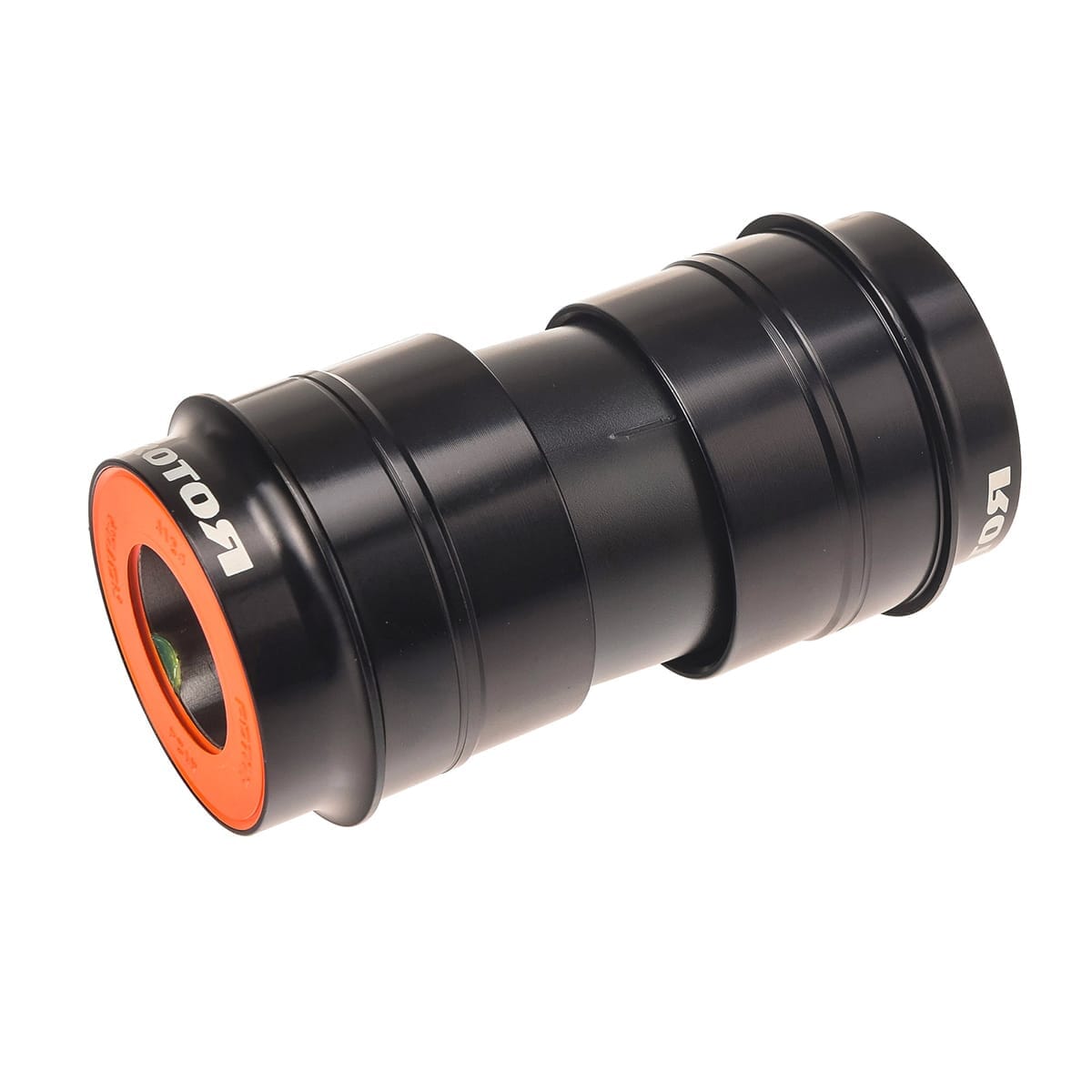

ROTOR PRESS FIT 46-24 crankset

Visit bottom bracket ROTOR Press Fit 46-24 can be mounted on a Press Fit frame 46 mm in diameter and 68 mm wide. You'll be able to install a crankset with a 24 mm axle (standard Shimano).

The design of this crankset offers excellent performance: steel ball bearings, anodized aluminum body and high-quality silicone seals.

From the very first pedal strokes, you'll find greater fluidity and reliability.

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	screw-on	BSC / BSA
34,8	73	screw-in	BSC / BSA
34,8	83	screw-in	BSC / BSA
34,8	100	screw-in	BSC / BSA
27	95,5	insert	BB 96 (Trek)
41	92	insert	PF 92
42	68	insert	BB 30
42	73	insert	BB 30
46	68	insert	PF 30
46	73	insert	PF 30

Ref: 7967905513638
