SHIMANO

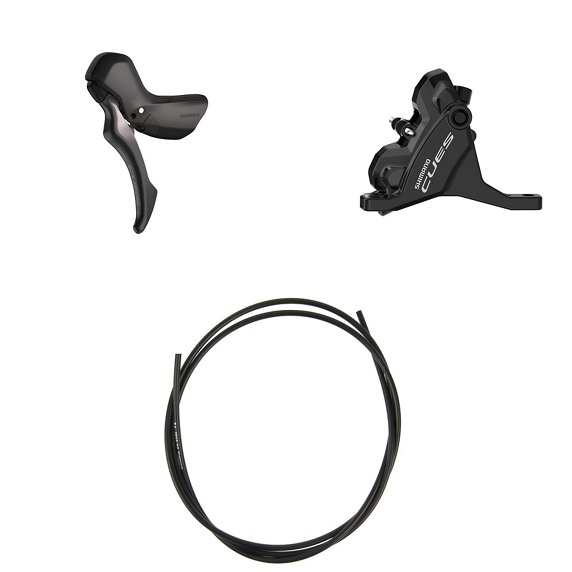

SHIMANO CUES U6030 Mono Flatmount Front Calipers and Left Levers without Discs

Réf. fabricant : IU60302DLF6RC100
Theleft lever and front caliper SHIMANO CUES U6030 Mono Flatmount is a set designed to enhance the experience of learning cyclists. Inspired by SHIMANO... Read more
Regular price 935,00 zł PLN
Regular price Sale price 935,00 zł PLN
View full details

Description

Theleft lever and front caliper SHIMANO CUES U6030 Mono Flatmount is a set designed to enhance the experience of learning cyclists. Inspired by SHIMANO 105 series technologies, the DUAL CONTROL LEVER features reworked ergonomics to suit all hand sizes. Its streamlined design brings the lever closer to the handlebar, facilitating access and enhancing control.

The grip is comfortable and intuitive, thanks to a design based on in-depth studies of cyclists' morphology. The hydraulic disc brake guarantees constant, controlled braking power, whatever the weather or terrain.

The BR-U6030-L Flat Mount front caliper is specially designed for 160 mm discs. Its compact two-piston design eliminates the need for additional adapters, reducing weight while ensuring simple installation. This lever-brake duo delivers performance, safety and confidence on every ride.

This lever is only compatible with 1x11 / 1x10 speed single-disc assembly.

Ref: 15042052260220

Informations techniques

GENERAL
Series: SHIMANO CUES U6030
Type : Left - Front - Mono - Hydraulic braking
Compatible only with LINKGLIDE 1x11/10 speed system

TRANSMISSION / LEVER
Part Number :
ST-U6030-L
Collar: 23.8-24.2mm
Speeds: mono mounting only
Technology: DUAL CONTROL LEVER and Reach adjustment
Derailleur cable: Optislick
Outer casing: OT-SP41 (manufacturer's recommendation)
Rear derailleur compatible for 1x11, 1x10 mounting:
RD-M8130 11 speeds with max. cassette 11-50 teeth, RD-U8000 11/10 speeds with max. cassette 11-50 teeth, RD-U6000 10 speeds with max. cassette 11-48 teeth, RD-M5130 10 speeds with max. cassette 11-43 teeth, RD-U4010 10 speeds with max. cassette 11-39 teeth.

BRAKING / CALIPER
Reference Caliper: BR-U6030-L
Material: Aluminum
Mounting: Flat Mount 160mm
Technology: J-Kit / ONE WAY BLEEDING
Pistons : x2
Brake fluid : Mineral
Hose connection: Straight
Hose length: 1000mm
Brake hose: SM-BH59-JK-SSR
Resin Brake Pads
Recommended disc: SM-RT54 SM-RT30 160mm

Informations prix

Supplier suggested retail price in January 2025
