1 6
ENVE

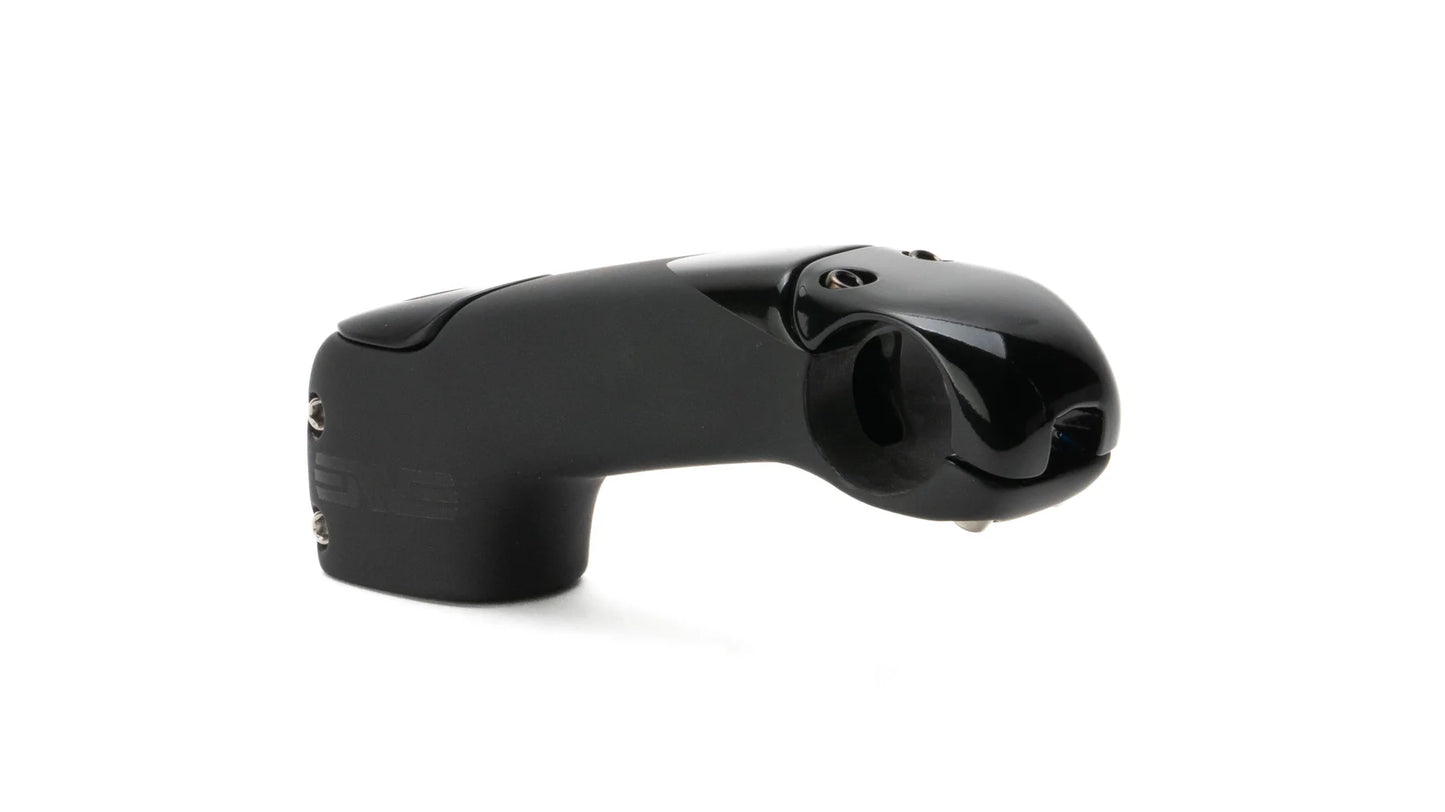

ENVE Passage Interne High Rise Stem

The ENVE Passage Interne High Rise Stem allows a more comfortable position without adding headset spacers. In addition to a positive angle, this stem... Read more
1.653,00 PLN
1.653,00 PLN
View full details

Description

The ENVE Passage Interne High Rise Stem allows a more comfortable position without adding headset spacers. In addition to a positive angle, this stem can provide 43.5 to 49 mm of rise.

Assembly Guide

Cable Routing Guide

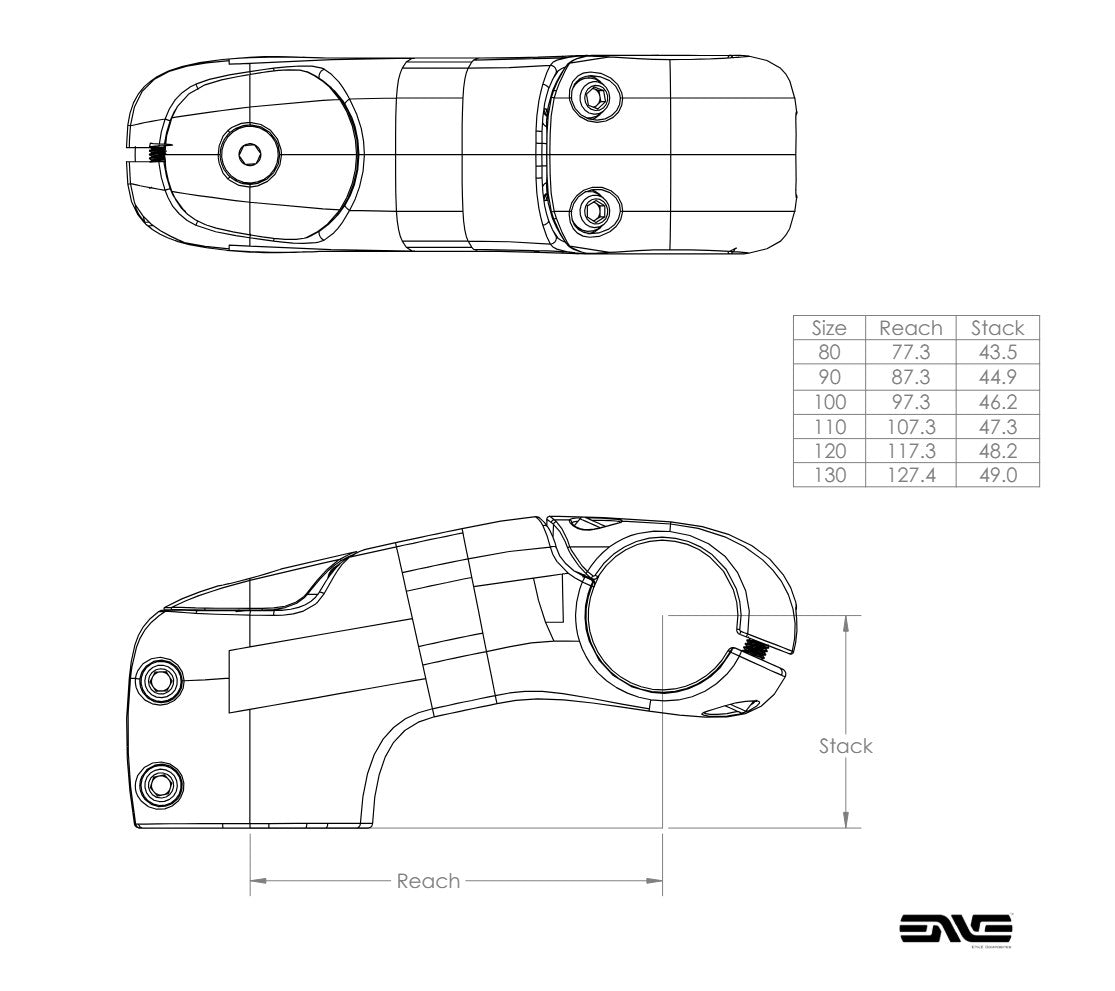

Length Reach (mm) Rise (mm) Weight (g) ENVE Reference
80mm 77,3 43,5 175g 300-1036-101
90mm 87,3 44,9 173g 300-1036-102
100mm 97,3 46,2 179g 300-1036-103
110mm 107,3 47,3 185g 300-1036-104
120mm 117,3 48,2 188g 300-1036-105
130mm 127,3 49 197g 300-1036-106

Ref: 9205467840861

Technical information

Material: Carbon
Faceplate material: Aluminium
Hardware material: Titanium

Ø Fork steerer: 1" 1/8
Ø Handlebar: 31.8mm
Rise/Angle: +12°

Tightening torque:
• At handlebar: 5.5nm
• At steerer: 5.5nm
Max. spacer height: 40mm

► Internal cable routing
► Round spacers
► Compatible with ENVE K Edge Aero Road GPS mount

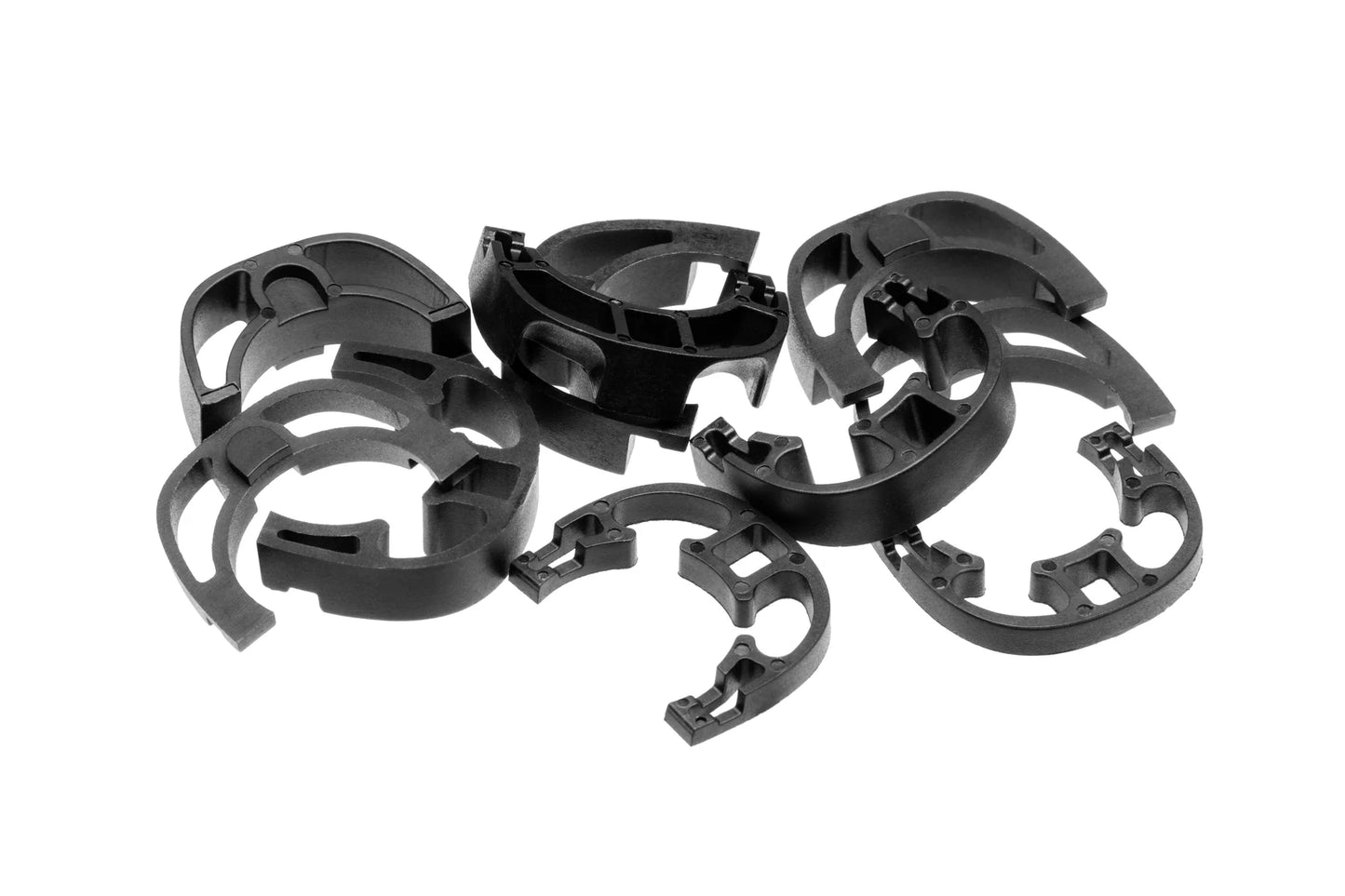

Supplied with headset spacers: 3x10mm, 2x5mm, 1x10mm in bypass
;

Price information

*Supplier recommended retail price in February 2024
